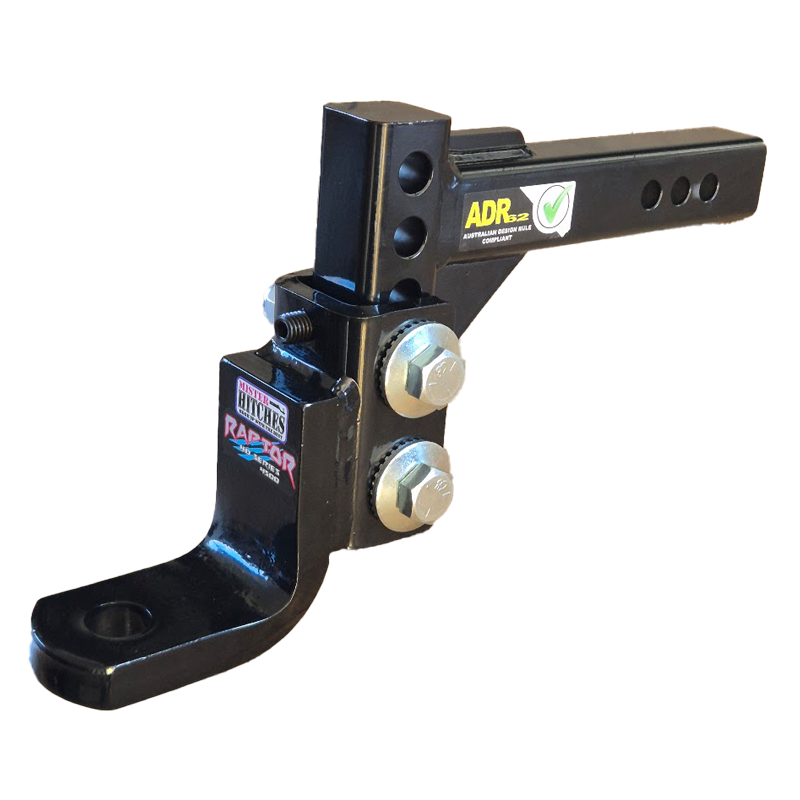

Mister Hitches - 4500kg - Adjustable - 32mm Towball Dia - Raptor - Standard Shank Length
Adjustable Heavy Duty Hitch Mount. 16 Adjustable Positions.
| Gross Towing Weight | 4500kg |
|---|---|
| Tongue Weight | 450kg |

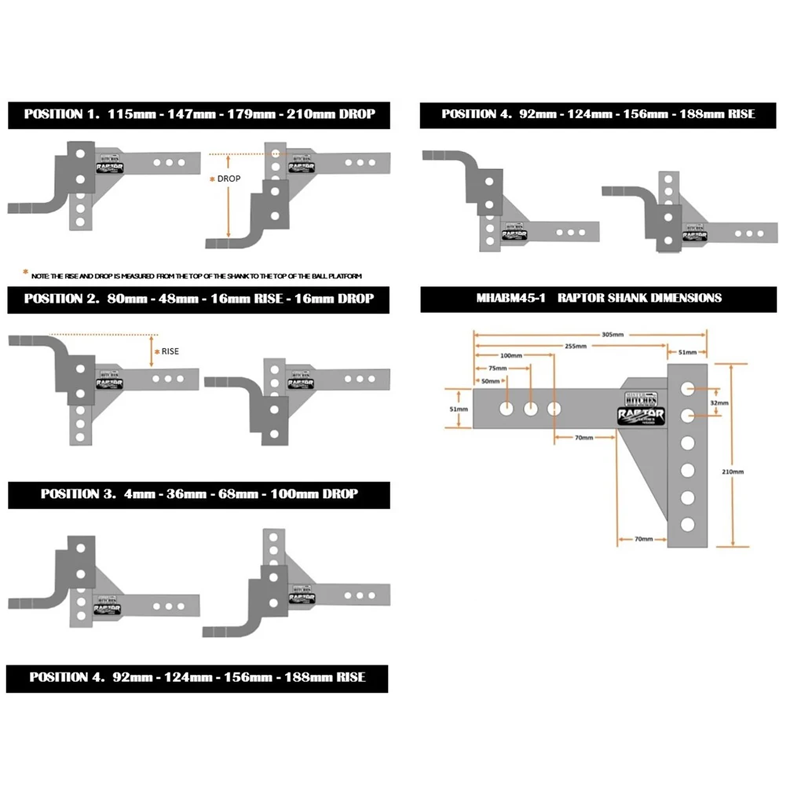

| Drop/Rise | Refer to image for configurations. Position 1 - Drop: 115/147/179/210mm Position 2 - Rise: 80/48/16mm. Drop 16mm Position 3 - Drop: 4/36/68/100mm Position 4 - Rise: 92/124/156/188mm |
| Shank Receiver Size | 50mm square shank |
| Shank Length | 170mm |

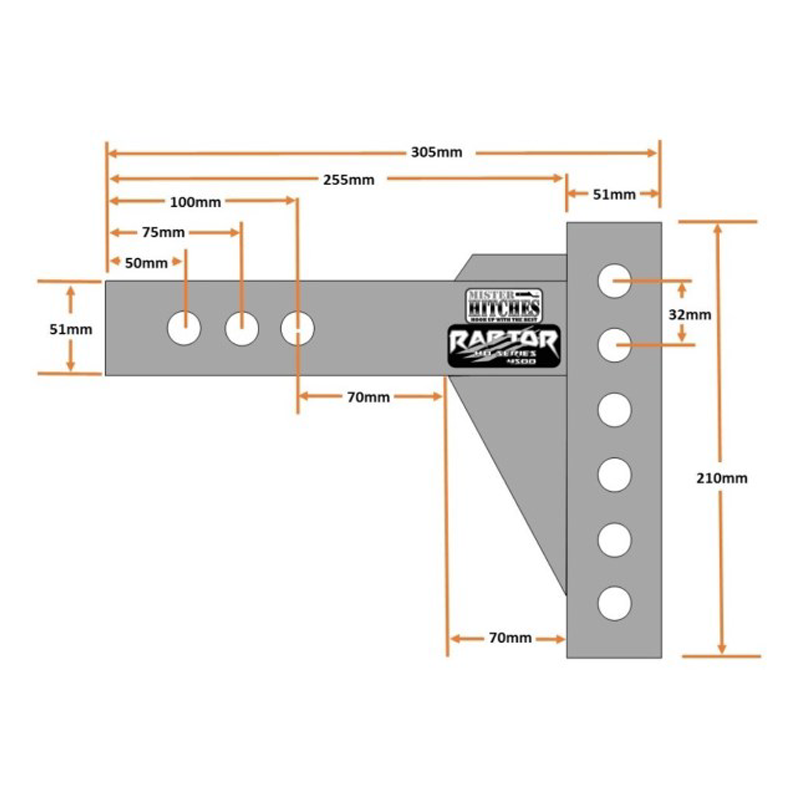

| Ball to Pin Length | 1st Hole: 365mm 2nd Hole: 340mm 3rd Hole: 315mm |
| Pin to Rear Length | 1st Hole: 50mm (Suits Ford Ranger) 2nd Hole: 75mm 3rd Hole: 100mm |
| Towball Shank Diameter | 1 1/4" 32mm* *Includes a reducing Bush to convert from 32mm (1 1/4") to 22mm (7/8") |
| Tongue Width | 75mm x 25m |
| Notes | H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers. Towball not included. |
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
Each
Contact us about this product
Contact us about this product
Delivery and Shipping
Delivery and Shipping
Orders are dispatched once payment has been confirmed. For courier deliveries, orders placed before the 1:30pm weekday cut-off are typically processed for the next available dispatch.
Delivery timeframes:
- Standard NZ courier: Dispatched the next working day after payment confirmation.
- Rural deliveries: Allow up to 5 working days.
- Large or bulky orders: Sent via bulk freight and may take 5-10 working days.
- International Airmail: Typically 3-14 days, with a maximum parcel weight of 20kg.
- International Courier: Available at an additional cost, with tracking included and a delivery target of 2-6 days. Maximum parcel weight is 30kg.
We accept returns of unused items in their original packaging within 14 days of purchase. Please contact us first to obtain a return authorisation before sending any items back.
Once your return is received and approved, a refund or store credit will be issued.
Please note:
- Special-order or imported items may not be eligible for return. In some cases, returns may be considered if the customer covers any associated freight costs.
- Refunds for credit card and PayPal purchases are subject to a 3% non-refundable transaction fee.
- Most returns incur a 10% restocking fee, capped at $25.
- Original shipping costs are non-refundable.
- Electrical items that have been used, damaged, or returned without their original packaging cannot be returned.
- Boat rollers and certain products supplied from the Rubbermark warehouse are subject to a 15% restocking fee.
For full details, please see our complete Delivery & Shipping Policy
Return Policy
Return Policy
We accept returns of unused items in their original packaging within 14 days of purchase. Please contact us first to obtain a return authorisation before sending any items back.
Request a return here.
Once your return is received and approved, a refund or store credit will be issued.
Please note:
- Special-order or imported items may not be eligible for return. In some cases, returns may be considered if the customer covers any associated freight costs.
- Refunds for credit card and PayPal purchases are subject to a 3% non-refundable transaction fee.
- Most returns incur a 10% restocking fee, capped at $25.
- Original shipping costs are non-refundable.
- Electrical items that have been used, damaged, or returned without their original packaging cannot be returned.
- Boat rollers and certain products supplied from the Rubbermark warehouse are subject to a 15% restocking fee.
For full details, please see our complete Returns Policy:
-
Drop
-
Rise
-
Shank Receiver Size
-
Shank Length
Identify the Drop/Rise you need.
Identify the Weight Capacity
Receiver Length (Vehicle)
Shank Length (Mount)
How to Identify the Drop or Rise required so you can tow flat.
To choose the correct drop or rise for your hitch mount please follow the below steps and refer to the diagram and video.
- On level ground, measure the distance from the ground to the top inside of the Hitch Receiver (A - refer diagram)
- Level your trailer using your jockey wheel to adjust the height.
- Measure the distance from the ground to the underside of the Trailer Coupling (B)
- A-B = Drop or Rise required (C). If it is a negative number then you will require a rise
Identify the Weight Capacity required.
- There are 3 key weights
- Gross Trailer Weight (GTW) - Total weight of your loaded trailer.
- Tongue Weight (TW) - weight applied on the tongue or coupling point. You can measure this with a Tow Ball Weight Scale.
- Vehicles Tow Rating - what is the maximum weight the vehicle can tow based on the manufacturers' specifications
- The Hitch Mount and Towball combination you select must meet or exceed the GTW.
- We have paired the Hitch Mounts with the correct Towballs in each of the product listings
Receiver Size
In almost all cases the receiver will be around 51mm / 2" square. In some cases usually with imported US vehicles the receiver maybe 2.5" or sometimes 3" square. We do sell a reducer for 2.5" to 2" HERE.
Sometimes there will be some movement as there will be a few millimetres in difference - we recommend using Anti Rattle Shims to sort if it is an issue.
Receiver Length
There are 2 measurements you need to check on the vehicle receiver as follows:
- Measurement A - Pin to End of receiver. Measure from the centre of the lock pin hole to the end of the receiver (where you insert the towball mount)
- Measurement B - Pin to the rear of the receiver. Measure from the centre of the lock pin hole as far into the receiver as you can go.
When choosing a towball mount (most of our mounts have dimensions on the listing) the mount needs to have an A measurement longer than the vehicle receiver and a B measurement shorter than the vehicle receiver to fit.
Lock Pin Size
Lock pins are 16mm standard size.
Other Helpful Information.
Towball Shank Diameter:
- Each Hitch Mount will have a Towball Shank Diameter, this is the diameter of the shank of the towball that goes through the Hitch Mount.
- There are 3 sizes
- 3/4" (19mm)
- 7/8" (22mm) - Most common
- 1" (25mm)
Hitch Shank Size:
- The shank of the Hitch Mount fits into the Hitch Receiver on your tow vehicle
- Most NZ Hitch Mount Shank sizes are 50mm x 50mm
