Cruisemaster | SKU: 33XT-CT37/200-VT93-S.BLK-CM.LC6.HLF-HS-T2900

Built to order: 10-12 Weeks

Pre-order

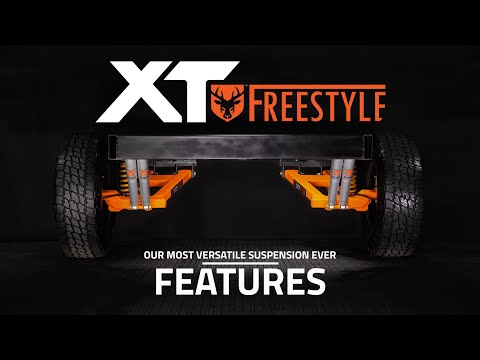

Cruisemaster XT Coil 3700KG Tandem 12" Electric Drums

Suitable Terrain

Highways
Sealed Roads
Dirt Roads
Corrugations
Extreme Off-Road

Available in:

Coil Single Axle (ATM)

1200Kgs – 1600Kgs – 2200Kgs
2600Kgs – 2800Kgs

Coil Tandem Axle (ATM)

2200Kgs – 2900Kgs – 3300Kgs
3700Kgs – 4100Kgs – 4500Kgs

Air Single Axle (ATM)

1400Kgs – 1700Kgs – 2600Kgs

Air Tandem Axle (ATM)

2800Kgs – 3400Kgs – 4500Kgs

Features:

Iconic arm design made in Australia
G35 (35mm gas) or G40 (40mm gas) dual tube dampers
Polyurethane bump stops & greaseable bushes
Two ride height options (straight / Drop Axles)
50mm Stub Axle with reinforcing plate
Highest load capacity in its class
Grease nipples for easy maintenance
Inbuilt Cable Management
Style it your way with a range of finishes including premium powder coating
Cruisemaster bolt on caliper design allows for easy disc brake upgrades
Electric Drum or ventilated Disc Brakes
Camber & Toe adjustment for reduced tyre wear
A range of stud patterns & spigot sizes available to match wheels
Gen.2 Shock Absorber Mounting System

AIR ONLY

Twin rate spring system with Firestone air springs
5 air control system options incl. Wireless & Auto
On-site levelling

COIL ONLY

Twin rate spring system with X5K King Springs (5 sizes)

Often copied but never matched; the iconic XT suspension from Cruisemaster has led the way for independent trailer suspension systems for well over 10 years now.

Now in its 6th generation XTFreestyle gives you more freedom then ever before! Whether it's the freedom of design specs, the freedom of style choices or most importantly the freedom to explore Australia your way!

While many trailer suspension systems on the market today may take “inspiration” from our original A-Frame arm design it’s the small things we have learnt over the last 5 generations of XT suspension design that keeps raising the bar for performance and functionality.

No longer considered just an “Off-Road” system, Cruisemaster XT takes it’s design queue’s from all terrain types to ensure you can achieve the right ride no matter the terrain making it a legitimate all-terrain system.

Cruisemaster XT is the most versatile caravan/trailer system available on the market today, giving you more options to build the perfect suspension for your needs.

Pricing on this listing is for:

XT Coil System in standard format,
12" Electric Drum Brakes Tandem format @ 3700kg total GVM
6 Stud Landcruiser

Please note these systems are highly configurable - please contact us for more information.

$6,197.89

incl GST
