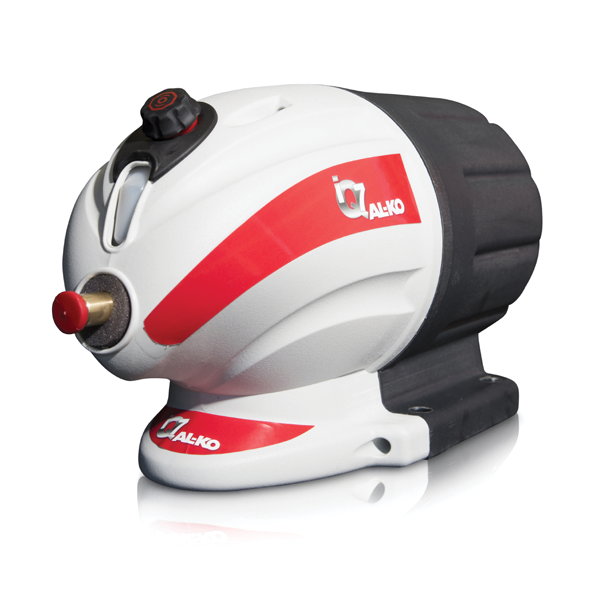

ALKO iQ7 Actuator Only - Electric Brake Controller
Suits caravans and boat trailers fitted with hydraulic disc brakes
AL-KO iQ7 works with the following:
- Elecbrakes bluetooth brake controller
- Hayes Energiser III
- Tekonsha Primus IQ
- Tekonsha Prodigy P2
- Tekonsha P3
- Compact IQ
- Redarc Towpro
iQ7 used in conjunction with a Tekonsha P3 brake controller fulfills the requirements of providing visible warning of low operating pressure or break away by flashing a red 'No Connection' display from the front of the controller. This feature is required in some Australian states.
Drum Brakes
If drum brakes are being used, a residual line pressure valve (obtain from a brake specialist) must be installed in the hydraulic line. This must be located BEFORE any split in the hydraulic line immediately after or as close as practical to the master cylinder port.
- Maximum output pressure 1000 psi
- Response time 0 - 1000 psi 0.29 sec
- Weight 6.5kg
- Height 255mm
- Length 350mm
- Width 185mm
- Control type - Proportional Electonic brake controller (not included)
- Comes with a 3 year warranty.
- Should be installed by a competent professional installer.
- PLEASE NOTE - THE IQ7/LT1000E WILL NOT WORK THROUGH THE STANDARD EVO SYSTEM
- The IQ7 does not have the word XTREME on the red nose label.
Each
