Parabolic tapered single leaf springs are ideal for fitting to all trailers used in marine applications. Being a single leaf eliminates the risk of salt water corrosion between the leaves. The 51mm wide are painted with enamel grey paint for marine use.

  • Painted
  • 1┬áLeaf
  • U Bolt Kit is sold separately

Single Axle Slipper Spring Measurement Guide

Overall Length Eye to Centre Bolt Width Camber Eye
760mm 330mm 51mm 100mm 16mm

Single Axle Slipper Spring Measurement Guide

Per pair

From (including GST): NZD$310.44

Availability: OK
Description Price
SKU: TE7S0500
Load Capacity: 500kg
NZD$310.44Add to Cart
SKU: TE7S1000
Load Capacity: 1000kg
NZD$365.87Add to Cart
SKU: TE7S1500
Load Capacity: 1500kg
NZD$396.35Add to Cart
SKU: TE7S2000
Load Capacity: 2000kg
NZD$455.11Add to Cart
ReviewsWrite ReviewAsk a question

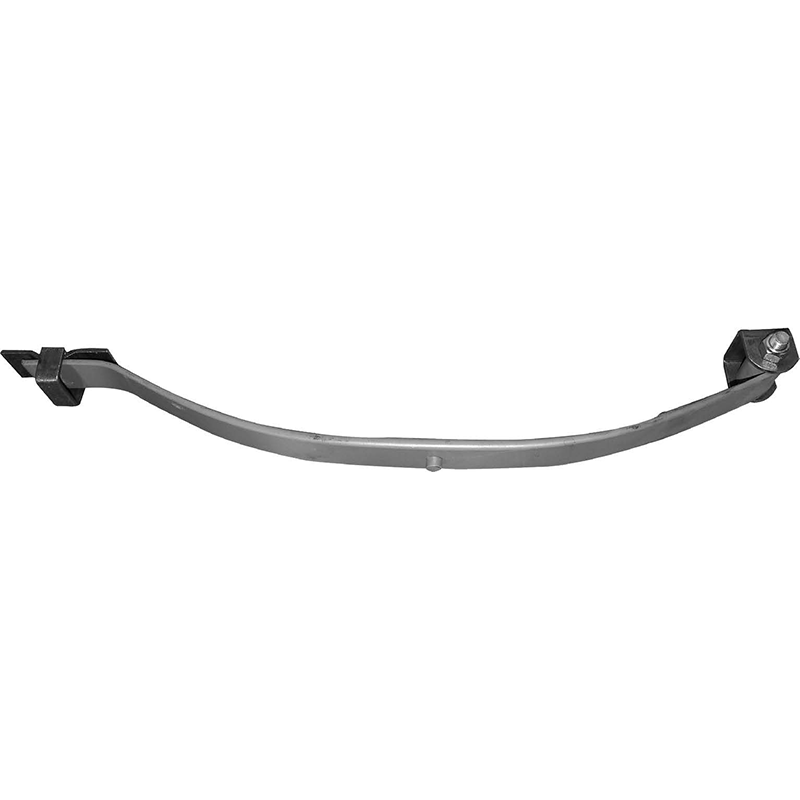

Slipper Spring Kit - Parabolic - 51x760mm - Marine Painted
