Optitec Caravan Mover is the best in class caravan mover delivering exceptional performance, ease and peace of mind.
- Effortlessly move 3.5 Tonne caravans, boats and trailers
- Turn double axle vans 360 degrees
- Less than one minute to connect, remove or transfer to another trailer or caravan
- Fully remote control operated (remote included)
- Compact and portable to use at home and away
- Rigorous safety features including dynamic braking
Optitec Remote Control Jockey Wheel Specifications
- Weight: 22kg

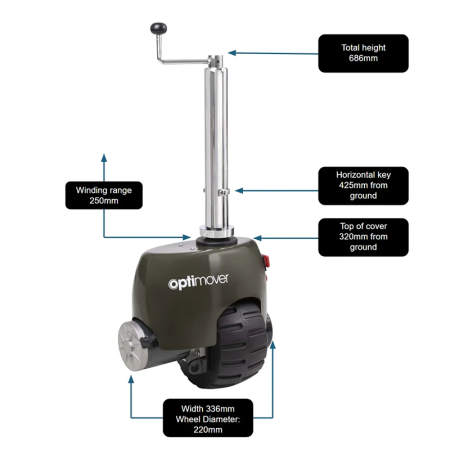

- Dimensions: 326x220x760mm
- Motor capacity: 12V DC, 50A.
- Connect Optimover to your caravan battery (provided it is wired to draw power out) via an anderson plug.
- Connect Optimover directly to a 12V Battery. Recommend at least 80AH.
- Connect Optimover to a 12V jump starter / portable battery pack. Though there are many compatable options, the team at Optitec use and recommend the Repco 1700A AGM Sealed Battery Pack
- If you need to use a connector lead longer than 2m, ensure you use at least 6 B&S cable.
- Operating Speed: 8 metres per minute
- Recommended maximum weight: 3500kg
- Maximum towball weight – 350kg
- Remote Control Range – Up to 50 metres
- Remote Control Frequency – Aust Standards compliance
- Dynamic Braking – Motor Stops and holds immediately
- It will move a 2.5 Tonne trailer on a 10% or 6 degree gradient (1m rise for every 10m) on concrete. However, the weight distribution of your trailer and the surface of the incline (concrete, grass, gravel) will influence performance on inclines.

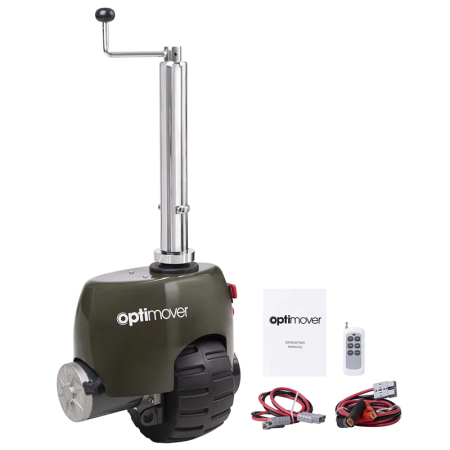

Optimover Caravan and Boat Trailer Mover Kit Includes:
- Remote Control
- 2 Power Cables
- Anderson to Anderson
- Anderson to Alligator Clips

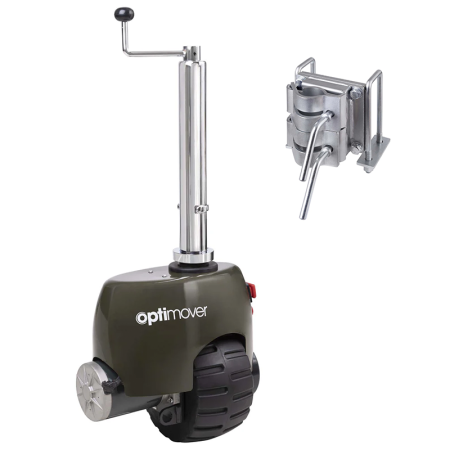

- 1x Double Clamp Bracket with U-Bolts to fix to your Drawbar - Choose from the below options:
- OW21 - To fit drawbar 75mm high x 75mm wide - Ideal for most Boat trailers
- OW18 - To fit AL-KO Chassis Drawbars - Perfect for all European and UK Caravans on an AL-KO Chassis.
- OW15 - To fit drawbar 150mm high x 50mm wide - The most common Caravan clamp option
- OW14 - To fit drawbar between 100& 130mm high x 50mm wide - The most common Clamp for Jayco Caravans.
- OW6 - To fit drawbar 150mm high and any width up to 150mm.
- OW7 - To fit drawbar 100mm high & any width up to 100mm
- Optional Carry Bag (not included) - $180.00
