This Handy Adjustable 8 Hole Bolt On Receiver is designed to bolt to existing pre-drilled mounting points in the rear frame cross brace of most Trucks, Landcruisers or Land Rovers.
Can also be bolted to any Pintle Hook Bolt configuration.
FULLY REVERSIBLE.
- Gross Towing Weight: 4500kg
- Tongue Weight: 450kg

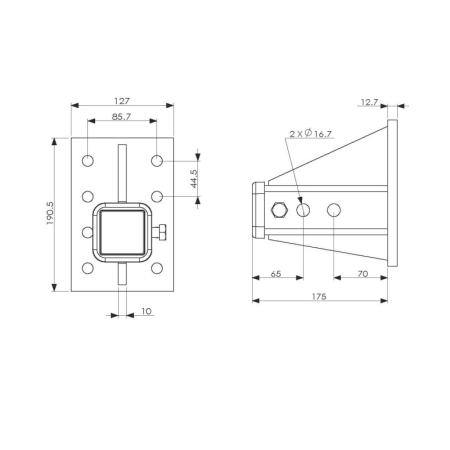

- Mounting holes: 86mm x 44.5mm
- 2 Pin Holes for greater versatility.
Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Receiver

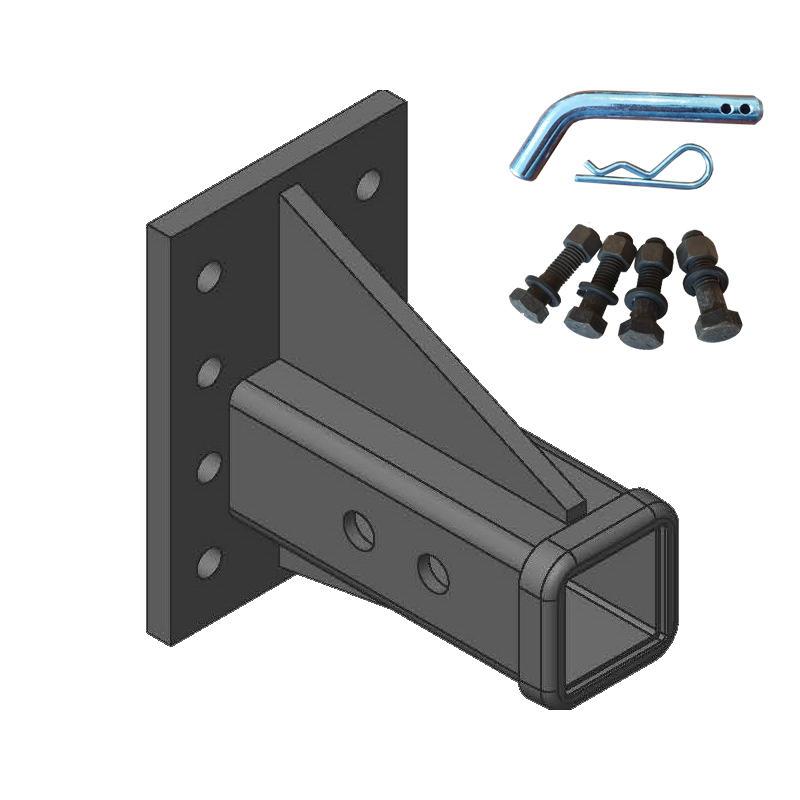

Includes:
- Anti-Rattle Bolt
- Hitch Pin
- 4x Grade 8, 2” x 1/2” Mounting Bolts, Nuts & Washers
Do Not Exceed the rated Capacity of the Receiver Tube or the Mounting Plate to which it will be mounted. Extended Load Length will reduce the Rated capacity refer below.
Refer to an Engineer if in doubt. (It is important to consider the leverage placed on your receiver hitch and vehicle by heavy cargo. Generally, the use of extenders (and hitch adapters) can reduce the tongue weight capacity / vertical load capacity of your vehicle’s receiver hitch. Extenders under 30cm long reduce load capacity by 25%, and extenders over 30cm reduce load capacity by 50%.)
