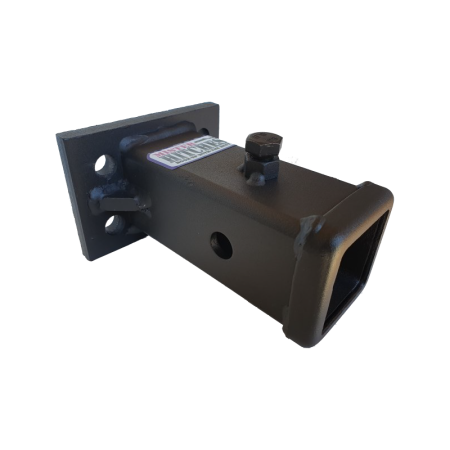

This handy bolt-on receiver is designed to bolt to existing pre-drilled mounting points in the rear frame cross brace of most Toyota Land Cruisers or Land Rovers. Can also bolt to any Pintle mount configuration.

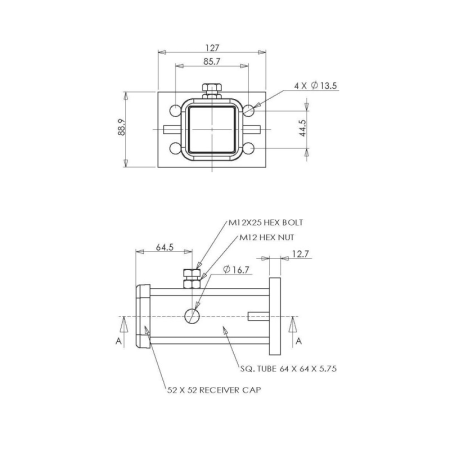

Mounting Dimensions: 86mm x 44.5mm (3-3/8” x 1-1/4”)

Can also be mounted on any suitable mounting structure.

Includes an anti-rattle bolt to hold the accessory firmly in the receiver tube.

The hitch pin and mounting hardware not included.

Features:

• Gross Towing Weight: 2250kg
• Tongue Weight.: 225kg
• 5.75mm steel shank, robotic welded for strength. Shank I.D. 52mm x 52mm
• Bolt pattern 86mm (3-3/8”) x 44.5mm (1-1/4”) suits pintle mounts, Land Cruiser & Land Rover rear frame/cross brace pre-drilled 4 hole mounting points
• Includes strengthening gussets and collar
• Instructions included
• Seaguard matte black powder coat finish gives superior corrosion protection
• Use 13mm grade 8 bolts & nuts & torque to 136Nm (100ft-lbs). Bolt hardware sold separately (part no. MHPBK)
• Do not overload
