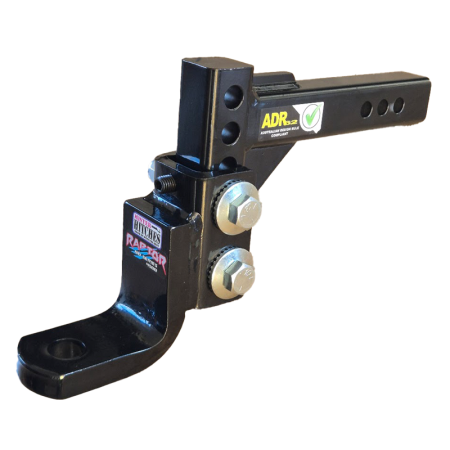

Adjustable Heavy Duty Hitch Mount. 16 Adjustable Positions.
| Gross Towing Weight |
4500kg |
| Tongue Weight |
450kg |
| Drop/Rise |

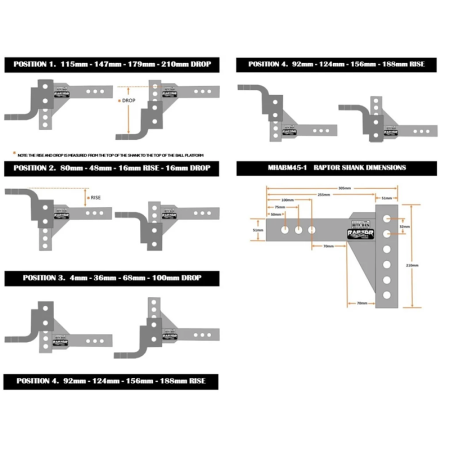

Refer to image for configurations.
Position 1 - Drop: 115/147/179/210mm
Position 2 - Rise: 80/48/16mm. Drop 16mm
Position 3 - Drop: 4/36/68/100mm
Position 4 - Rise: 92/124/156/188mm |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
170mm |

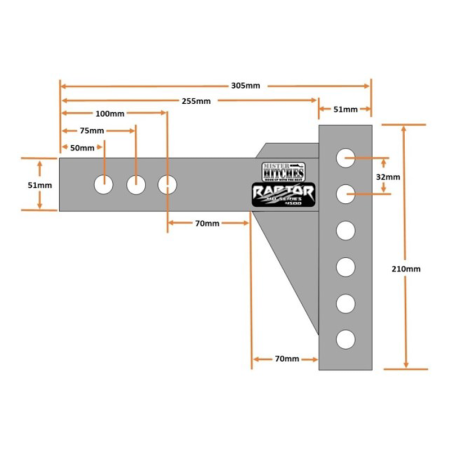

| Ball to Pin Length |
1st Hole: 365mm
2nd Hole: 340mm
3rd Hole: 315mm |
| Pin to Rear Length |
1st Hole: 50mm (Suits Ford Ranger)
2nd Hole: 75mm
3rd Hole: 100mm |
| Towball Shank Diameter |
1 1/4" 32mm*
*Includes a reducing Bush to convert from 32mm (1 1/4") to 22mm (7/8") |
| Tongue Width |
75mm x 25m |
| Notes |
H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.
Towball not included. |
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
Each
