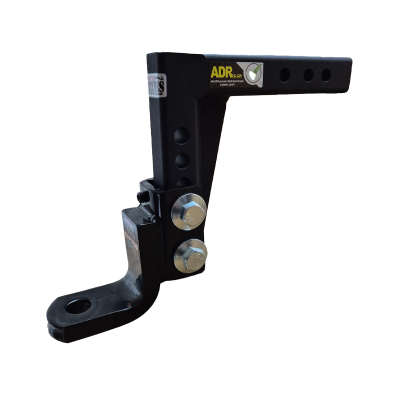

Adjustable Heavy Duty Hitch Mount. 16 Adjustable Positions.
| Gross Towing Weight |
4500kg |
| Tongue Weight |
450kg |
| Drop/Rise |
Refer to image for configurations.
Position 1 - Drop: 209/241/273/305mm
Position 2 - Drop: 16/48/80/112mm
Position 3 - Rise: 92/60/28mm. Drop: 4mm
Position 4 - Rise: 190/222/254/286mm |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
198mm |
| Ball to Pin Length |
1st Hole: 365mm
2nd Hole: 332mm
3rd Hole: 315mm |
| Pin to Rear Length |
1st Hole: 50mm (Suits Ford Ranger)
2nd Hole: 82.5mm
3rd Hole: 125mm |
| Towball Shank Diameter |
1 1/4" (32mm)
*Includes a reducing Bush to convert from 32mm (1 1/4") to 22mm (7/8") |
| Tongue Width |
75mm x 25m |
| Notes |
H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.
Towball not included |
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
