Adjustable & fully reversible – 24 adjustment positions. Both parts of the hitch are reversible.
| Gross Towing Weight |
4000kg |
| Tongue Weight |
400kg |
| Drop/Rise |

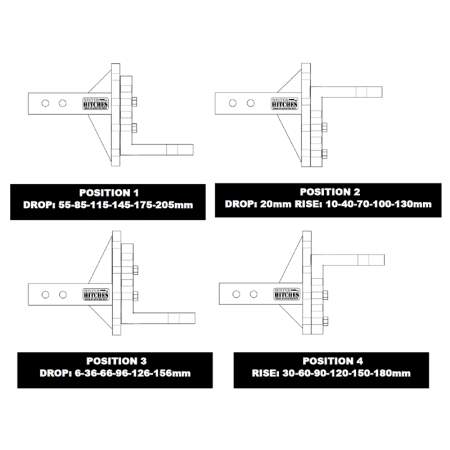

Refer to image for configurations.
Position 1 - Drop: 55/85/115/145/175/205mm
Position 2 - Drop: 20mm. Rise: 10/40/70/100/130mm
Position 3 - Drop: 6/36/66/96/126/156mm
Position 4 - Rise: 30/90/120/150/180mm |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
150mm |
| Ball to Pin Length |
1st Hole: 285mm
2nd Hole: 245mm |
| Pin to Rear Length |
1st Hole: 40mm (Suits Ford Ranger)
2nd Hole: 80mm |
| Towball Shank Diameter |
22mm (7/8") |
| Tongue Width |
75mm x 25mm |
| Notes |
|
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
Each
