| Gross Towing Weight |
3650kg |
| Tongue Weight |
365kg |
| Drop/Rise |
Drop:102mm
Rise: 76mm
Can be used in both the drop & rise positions. |
| Shank Receiver Size |
50mm square shank |

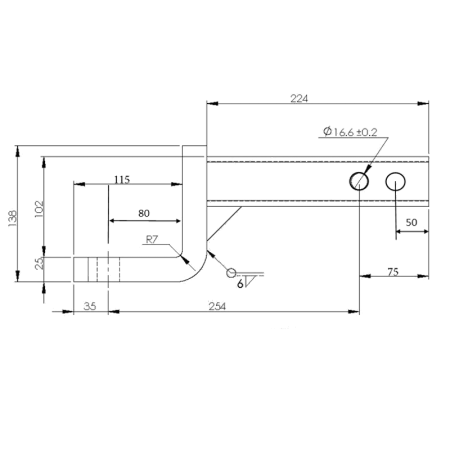

| Shank Length |
224mm |
| Ball to Pin Length |
1st Hole: 280mm
2nd Hole: 255mm |
| Pin to Rear Length |
1st Hole: 50mm
2nd Hole: 75mm |
| Towball Shank Diameter |
22mm (7/8") |
| Tongue Width |
Extra Heavy Duty - 75mm x 25mm |
| Notes |

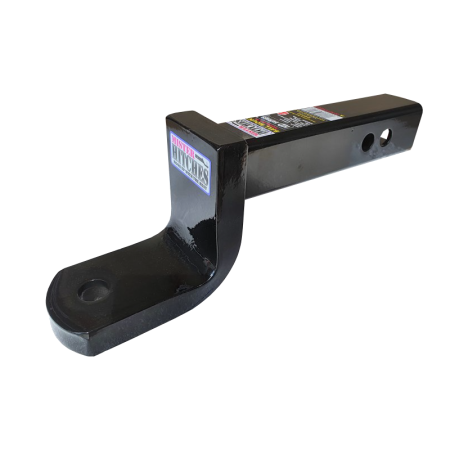

Black powder coated finish
CNC machined for maximum accuracy
Robotic welded for consistent quality |
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
Each
