| Gross Towing Weight |
3500kg |
| Tongue Weight |
350kg |
| Drop/Rise |

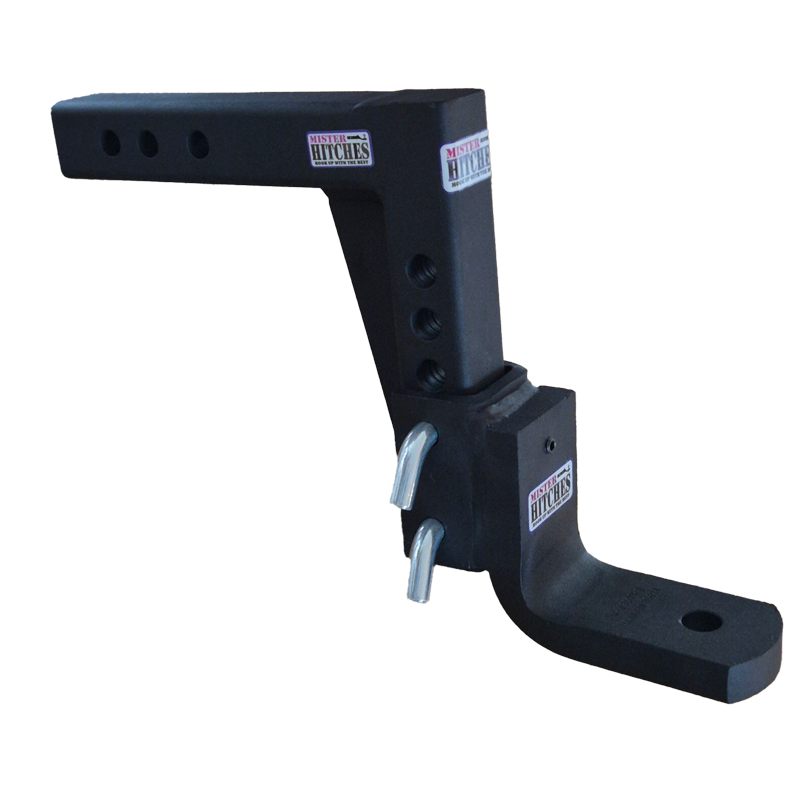

Refer to image for configurations.
Position 1 - Drop: 210/240/270/300mm
Position 2 - Rise: 10/40/70/100mm
Position 3 - Rise: 150/180/210/240mm
Position 4 - Rise: 15mm Drop: 15/45/75mm |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
198mm |

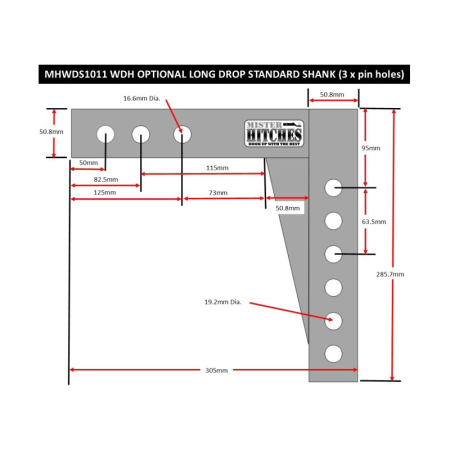

| Ball to Pin Length |
1st Hole: 395mm
2nd Hole: 362.5mm
3rd Hole: 320mm |
| Pin to Rear Length |
1st Hole: 50mm (Suits Ford Ranger & Pajero Sport)
2nd Hole: 82.5mm
3rd Hole: 125mm |
| Towball Shank Diameter |
7/8" (22mm) |
| Tongue |

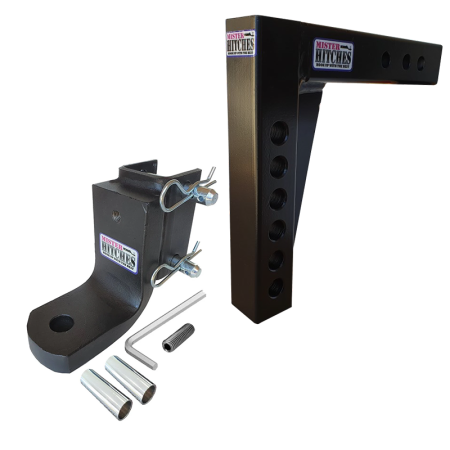

MHMHBM - Mix'N'Match Adapter.
75mm x 25mm
Quick Change Double SHear Rated Pins & Clips
Anti Rattle M45 Allen Key Tool & Screw
Shank Sleeve Reducing Bushes which reduces the movement between ball platform & shank |
| Notes |
H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.
Towball not included |
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
