| Gross Towing Weight |
3500kg |
| Tongue Weight |
350kg |
| Drop/Rise |

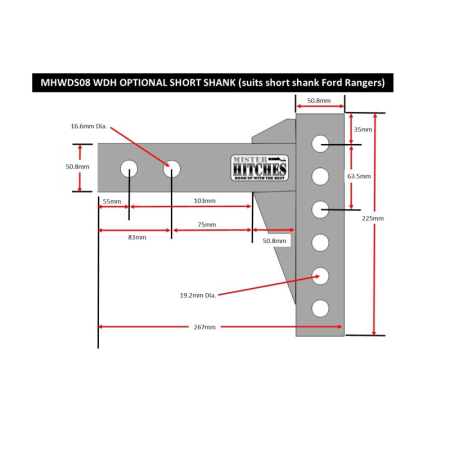

Refer to image for configurations.
Position 1 - Drop: 104/136/168/200mm
Position 2 - Rise: 11mm. Drop: 21/53/85mm
Position 3 - Rise: 75/107/139/171mm
Position 4 - Drop: 0/32mm. Rise 32/64mm |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
198mm |
| Ball to Pin Length |
1st Hole: 348mm
2nd Hole: 320mm |
| Pin to Rear Length |
1st Hole: 55mm (Suits Ford Ranger & Pajero Sport)
2nd Hole: 83mm |
| Towball Shank Diameter |
7/8" (22mm) |
| Tongue |
MHMHBM - Mix'N'Match Adapter.
75mm x 25mm
Quick Change Double SHear Rated Pins & Clips
Anti Rattle M45 Allen Key Tool & Screw
Shank Sleeve Reducing Bushes which reduces the movement between ball platform & shank |
| Notes |
H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.
Towball not included |
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
