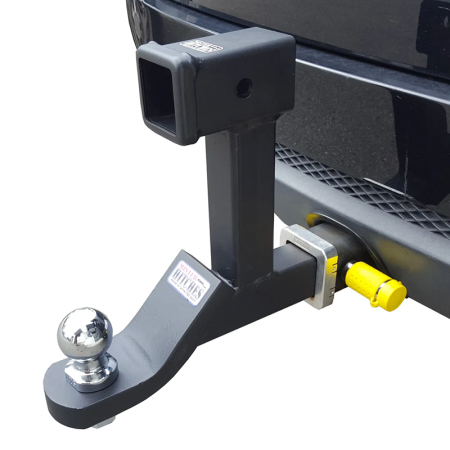

Now you can tow and use your receiver-mounted bike carrier at the same time!
IMPORTANT! Please note there is 190mm clearance from the top of the mount's tongue to the underside of the top receiver. Some bike racks will not provide enough vertical room for the Caravan or Trailer to be removed without first removing the bike rack.
| Gross Towing Weight |
*3500kg |
| Tongue Weight |
*350kg |
| Top Receiver Capacity |
160kg - Not to be use for towing |
| Top Receiver Size |
Internal:50 x 50mm |
| Top Receiver Height |
170mm from Top of Shank to bottom of Top Receiver.

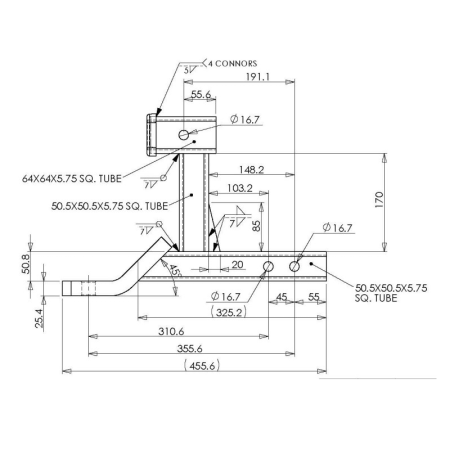

Please refer to diagram for all measurements |
| Drop |
Drop: 51mm |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
203mm |
| Ball to Pin Length |
1st Hole: 355.6mm
2nd Hole: 310.6mm |
| Pin to Rear Length |
1st Hole: 50mm
2nd Hole: 100mm |
| Towball Shank Diameter |
22mm (7/8") |
| Tongue Width |
75mm x 25mm |
| Notes |
*It is important to consider the leverage placed on your receiver hitch and vehicle by heavy cargo. Generally, the use of extenders (and hitch adapters) can reduce the tongue weight capacity / vertical load capacity of your vehicle’s receiver hitch. Extenders under 30cm long reduce load capacity by 25%, and extenders over 30cm reduce load capacity by 50%. |
Click here for information on how to check your vehicle fitment.
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
