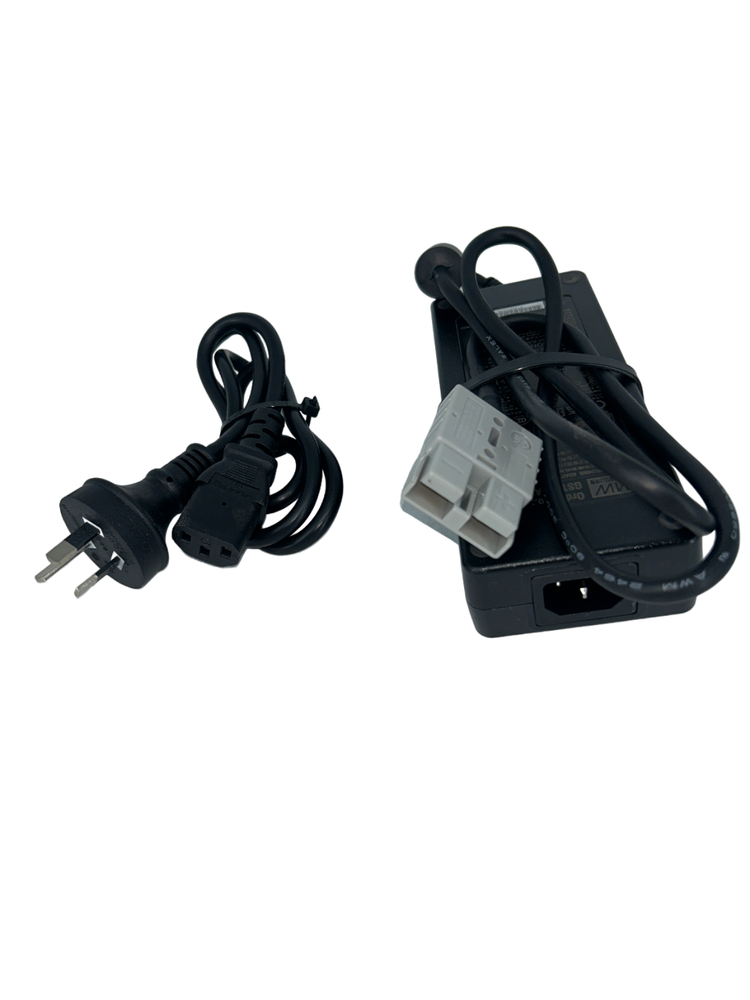

Mean Well 138W 12V 11.5A Power Supply - Anderson Plug[AF-transf-ap]

NZD$135.00
by aufocus

Power supply to run the aufocus diesel heaters off mains power with an Anderson Plug to the heater.

Features:

Universal AC input / Full range
No load power consumption < 0.15W
Energy efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
MEPS compliant
3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Short circuit / Overload / Over voltage / Over temp.
Fully enclosed plastic case
LED indicator for power on
Built-in active PFC function
Fanless design
3 years warranty

Specifications

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 120A at 230VAC
Overload protection Range	105%~135% rated output power
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	105%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Hold up time	20ms at full load
Withstand voltage	I/P-O/P: 3kVAC, 1 minute
Working temperature	-30~+70°C
Safety standards	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B, CNS13438, GB9254
Length of output cable	120cm of UL2464, 18AWGx4C
Dimension (LxWxH)	175x 72x 35 mm

(including GST): NZD$135.00

Availability: OK
