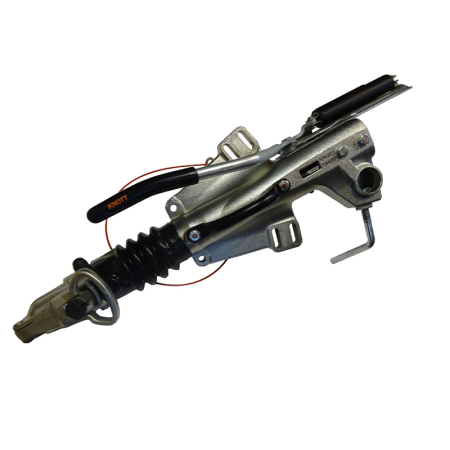

Genuine Knott KFG35 cast delta coupling fitted with the cast head.

• The coupling can be mounted on top or underneath the A frame
• The head has a wear indicator on the side.
• The head can be locked when fitted on or off the vehicle.(comes with 2 keys)
• The body of the coupling is cast steel.
• It has 6 mounting holes in a triangular shape (Delta)
• The front holes are 120mm apart centre to centre, the middle holes are elongated and range between 175mm and 230mm, the distance between front to middle is 166mm.
• The rear holes are elongated and range between 190 and 255mm the distance between front to rear is 207mm
• It has a working capacity of between 2700kg-3500kg with a maximum nose weight of 150kg.
• Coupling includes a sprung oil damp assisted handbrake assembly complete with breakaway cable.
• A jockey pad and handle are included.
