| Rating |
2500kg |
| Drop |
Adjustable up to 175mm from pin centre |
| Rise |
Adjustable up to 155mm from pin centre
Ensure that the bolts are tight (189nm recommended) before towing |
| Shank Receiver Size |
50mm square shank |
| Shank Length |
250mm |
| Ball to Pin Length |
300mm |
| Pin to Rear Length |
83mm |
| Towball Shank Diameter |
22mm (7/8") |
Click here for information on how to check your vehicle fitment.
English and European Caravan Owners - As per the Manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European Caravans fitted with the AL-KO AKS Stabiliser Couplings.
Each

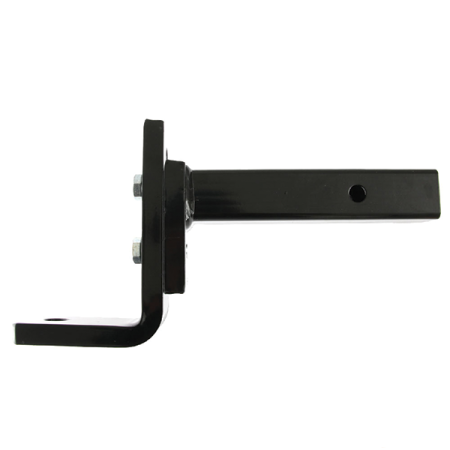

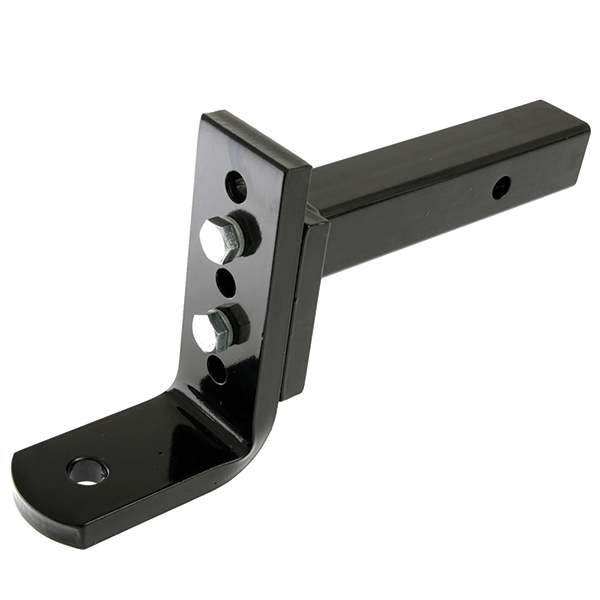

Pro Series Adjustable Tow Ball Mount, with 50mm square shank
- Rated up to 2500kg
- Towball Shank 22mm
- Drop = 155mm
- Ball to Pin = 300mm
- Tongue width = 75mm
Ensure that bolts are tight before towing. 189.nm is recommended.
Each
