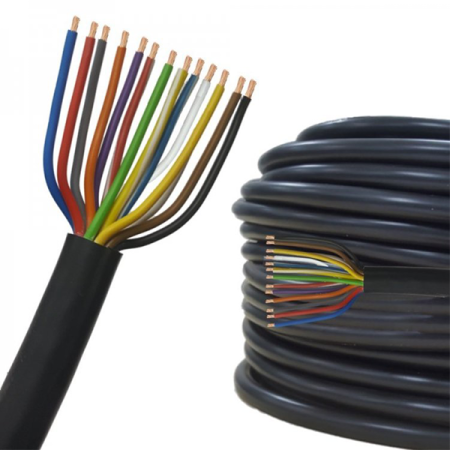

12 Core cable suitable for post 2010 late model UK & European Caravan wiring connections.

Black PVC Sheathed 12 core cable (Diameter - 12.5mm) with copper conductors consisting of

  • 7x 0.65mm
  • 1x 1.5mm
  • 4x 2.5mm rated at 12 Amp ( The heavier cables re for caravan auxillary power and earth returns)

Designed for wiring 12 Pin European style plugs for road lighting functions including

  • Reverse lights and
  • Caravan Auxilliary power circuits for battery charging,
  • Refrigerators whilst driving etc..
  • The International standard that applies to caravan wiring only requires 12 conductors for the 13 pin connector.
  • One pin is designated as a spare with no function or can be used for the AL-KO ATC Stabiliser.

Wiring Connections

  • Yellow = Left hand indicator
  • Blue = Fog light
  • White = Earth
  • Green = Right hand indicator
  • Brown = Right hand side light
  • Red = Brake light
  • Black = Left hand side light
  • Pink = Reversing light
  • Orange = Positive supply for interior lights or charge
  • Grey = Fridge (ignition controlled supply)
  • White/Black =Earth return contact 10
  • White/Blue = Sensing Device
  • White/Red = Earth return contact 9

If you require more than 1 metre, enter the quantity of metres required in the quantity box when checking out. For example if you require 10M, the purchase quantity would be 10 x 1 Meters

SOLD PER METER.

(including GST): NZD$24.00

Availability: No Stock
This product will be in stock on Monday 16 December, 2024.

NZD$24.00
