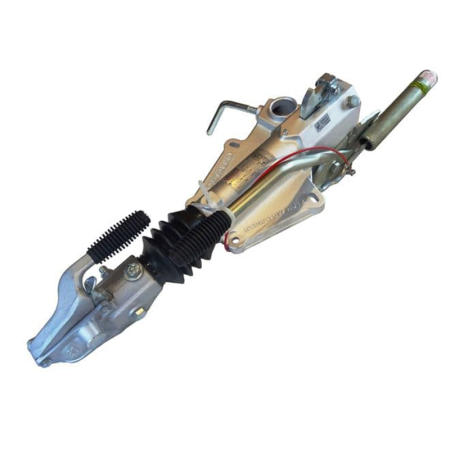

Genuine Bradley HU12 cast delta coupling fitted with the cast head.

The coupling can be mounted on top of the A-frame.

The head has a wear indicator on the side.

The head can be locked when fitted on or off the vehicle. (Lock not supplied).

The body of the coupling is cast steel. It has 4 mounting holes in a triangular shape (Delta)

The front holes are 120mm apart centre to centre, the rear holes are elongated and range between 200mm and 230mm, the distance between front to rear is 165mm.

It has a working capacity of between 2250 --3500kg, with a maximum nose weight of 350kg.

Coupling includes a spring-assisted handbrake assembly complete with breakaway cable.

A jockey pad and handle are included.

Al-ko part number 1732319
Al-ko Eti number 811885
