Trailer Electric Drum Brake - Trailer Mounted

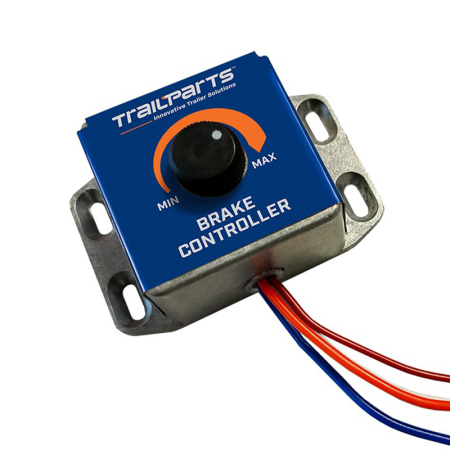

The Trailparts™ on trailer controller has adjustable gain settings, and is designed for use with electric drum brakes on trailers under 2500kg. It has several advantages over other imported trailer mounted controllers, such as

• Multi-voltage capable input 12v or 24v.
• Reduces the severity of initial braking by ramping up to full output over 0.50 of a second.
• Sealed unit.
• Compact design that measures only 65mm x 65mm.
• Simple 4 wire hook-up makes them fast and easy to install.

Note: To be used with 1 axle braked only.

BLUE WIRE - Connect to drums - Output
RED WIRE - Connect to Stop Lamp - Input
WHITE WIRE - Earth - Input
ORANGE WIRE - Permanent Live or Stop Lamp in vehicles older than 2012 - Input

BLACK WIRE - Connect to Battery via 20 amp fuse
