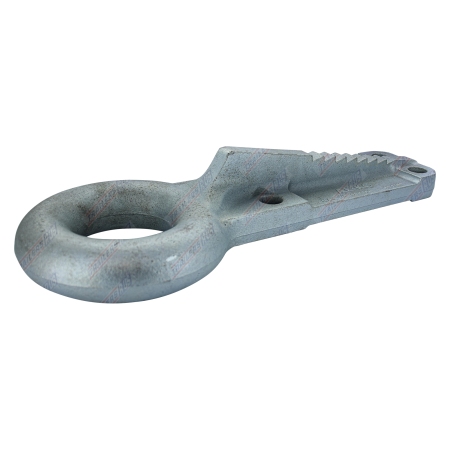

These Coupling rings are primarily used in applications where the tow vehicle is a heavy commercial truck, ring couplings are used when higher loads are involved.
Features:
When used in a commercial or defence department application, often a 75 mm ring type towing eye is requested.
Similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.
Specifications:
- Rating: 6000kg
- Ring Size: 75mm (3") (40mm ring depth / 150mm o/d)
- Mounting Hole Centres: 182mm (L) x 52mm (W)
- Mounting Hole Diameter: 16.8mm
- Surface Finish: Zinc Plated
- Ring Centre To First Mounting Hole (Nominal): 116mm
