AuFocus has built a reputation for quality, reliability and great value for money, and that is why AuFocus is now the most popular choice for the RV industry in Australia.

Features:

• RCM Certification
• Solid construction - high grade heat resistant hard casing
• Three modes: 1. Fan only / 2. Manual Heat Mode 1 - 10 / 3. Smart mode - set a temperature and it stops heating and burning fuel once it arrives at the target temperature and starts again once it drops two degrees.
• Small and compact design for an easy space-saving installation
• Easy to use LCD panel with remote control - Also features, Bluetooth connectivity and app to control from your phone.
• Sensors on both the control board and fan for additional safety protection
• High and Low Voltage & Current protection
• Fast heat up time and maintains a consistent temperature
• Auto cool down process when powered off
• Low fuel consumption

Specifications:

• Power: 1KW-5KW Adjustable
• Fuel: Diesel only
• Rated Voltage: DC 12V
• Fuel Consumption(L/h): 0.1-0.5
• Working Temperature: -40?~+50?
• Working Temperature of the Oil pump: -40?~+40?
• Main Unit Size: Length 390mm* Height 140mm* Width 150mm*
• Tank Size: Depth 110mm* Height 353mm* Width 320mm* Neck&Cap Height 75mm*
• Black flame retardant plastic casing (Top Grade)
• LCD - Can display Error Codes for easy troubleshooting if required
• Power (5~35w/h). peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.

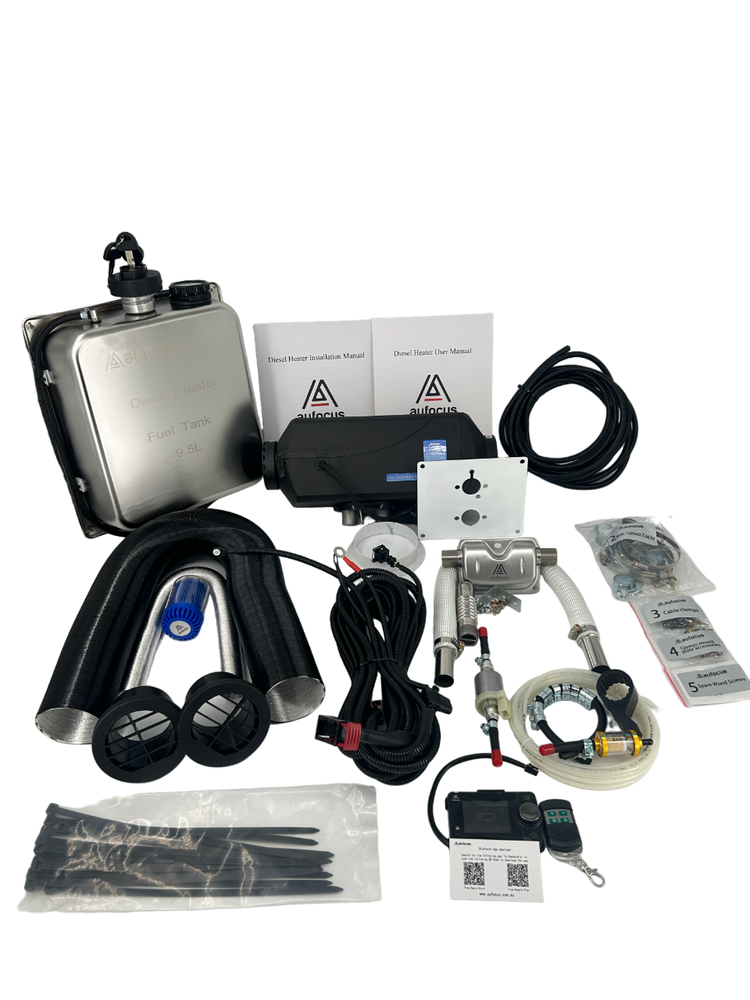

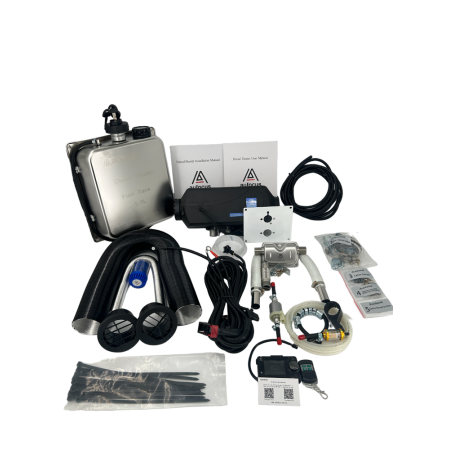

What is Included in the 5kw Diesel Heating Kit:

• Easy to follow DIY Installation manual
• Easy to read user manual

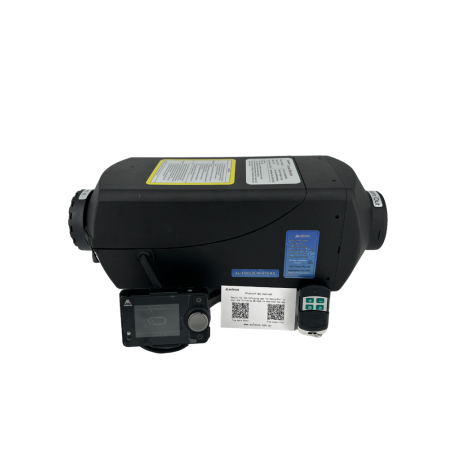

• 1x 5kw Heating Unit

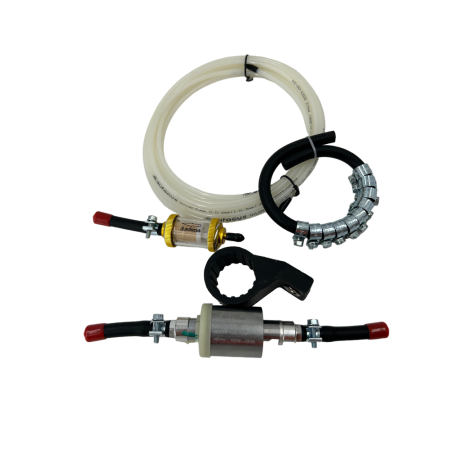

• 1x Super Quiet Pulse Fuel Pump 22ml with 2 black rubber connecting hoses
• 1x Pump Mount + Screws
• 1x Reusable Inline Fuel Filter - 60 Mesh, both ends are Aluminium
• 14x Fuel Hose Mini Clamps. 9-11mm (4x already connected and 3x spares)
• 6m Hard Nylon Fuel Line. ID:2mm, OD: 4mm. Pressure 7.8Mpa
• 6m Conduit Tube for Fuel Line protection
• 300mm Black Rubber Fuel Joiner. OD: 10mm, ID: 4mm

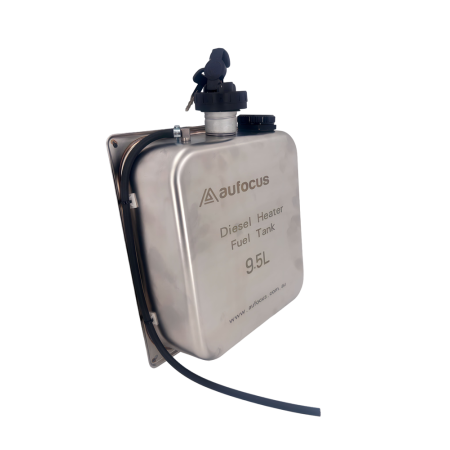

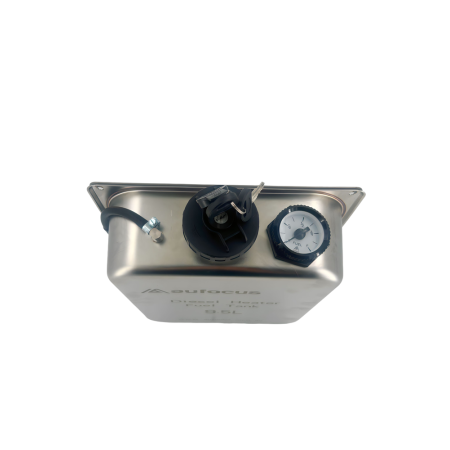

• 1x 9.5L Stainless Steel Fuel Tank with:
  • Lockable Fuel Cap and Key
  • Fuel Guage
  • SS304 Fuel Pickup Pipe
  • Black rubber Fuel Hose
  • 4x fixing screws.

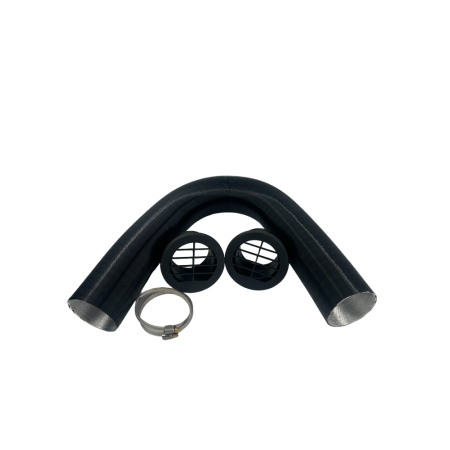

• 1800mm Hot Air Ducting Pipe - 75mm diameter. 4x Stainless Hose Clamps

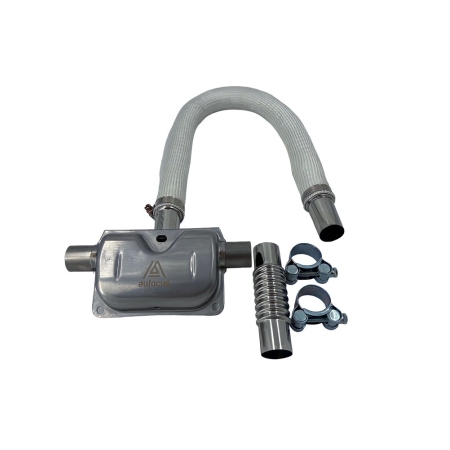

• 600mm Exhaust Pipe with sleeve protection - 25mm Diameter. Exhaust end 100mm. 3x Heavy Duty Bolt Hose Clamps

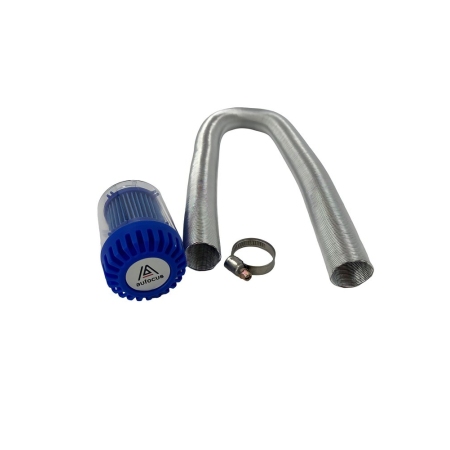

• 600mm Fresh Air Intake - 25mm Diameter. 2x Stainless Hose Clamps
• 1x Fresh Air Filter
• 1x Exhaust Silencer - 1x Bracket, 2x Self tapping screws, stud bolt and washer

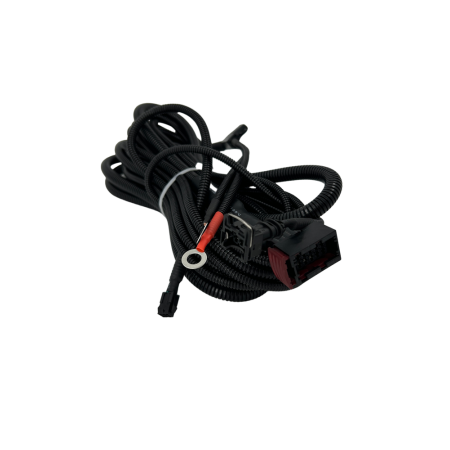

• 1x Wiring Harness
  • Flame-resistant conduit tube and Anderson Plug
  • 5m Power Cable
  • 3m Pump Cable
  • 2.5m Controller Cable
  • 1x 20A waterproof fuse
  • Terminal Internal Connector

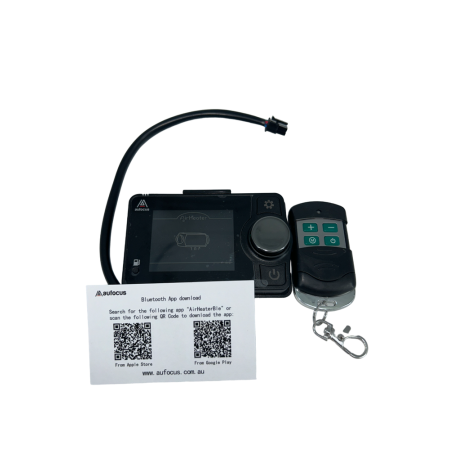

• 1x LCD Controller with Remote 433 Hz (30m distance) - 3x clamps with self-tapping screws
• 15x 300mm UV Cable Ties

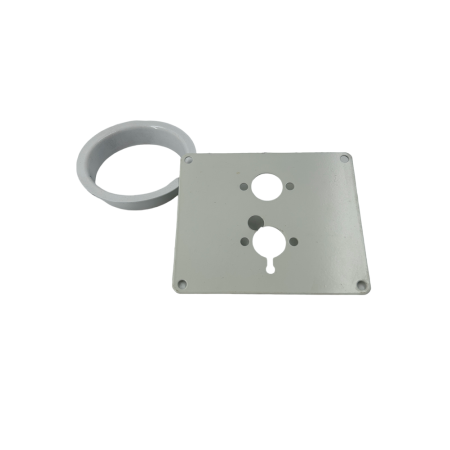

• 1x Floor Mount Protective Metal Ring
• 1x Mount Plate. Length 170mm x Width: 140mm x Thickness: 1.5mm - Used between the main unit and the floor.
• 4x Stud Bolts to connect the Mounting Plate to the Main Unit
• 4x self tapping metal screws for metal floor or frame.
• 9x wood screws for wooden flooring

Ask us about installers in your area.
