The new aufocus 4th Gen 2kw MZ Caravan and motorhome Deisel Heater with Bluetooth has arrived!

Experience ultimate convenience and warmth with the premium quality aufocus 2KW Diesel Heater Kit featuring a stainless steel tank, complete with a comprehensive 24-month warranty for peace of mind.

This is the most popular aufocus diesel heater and is used by caravan manufacturers such as Millard Caravans, Lumberjack, Kokoda Caravans, Star Vision Campers & Caravans, and many more.

The aufocus brand has built a reputation for quality, reliability, and great value for money and that is why its Diesel Heaters are now being used by a growing number of caravan manufacturers, reputable caravan centres, and outdoor retail outlets throughout Australia.

Features:

• AU designed
• Comprehensive step-by-step installation instructions
• High-Quality Aluminium heating unit
• Quiet motor
• Balanced fan
• Steel 5L Diesel Fuel Tank
• Durable Japan Kyocera Glow Plug
• High-quality, reliable and affordable
• 24-month Warranty
• On-road technical support
• All spare parts are held locally.
• Supplier to Jayco Caravans in Australia

• Power: 1KW-2KW Adjustable
• Fuel: Diesel only
• Rated Voltage: DC 12V
• Fuel Consumption(L/h): 0.1-0.3
• 3-wire temperature sensor
• Working Temperature: -40℃~+50℃
• Working Temperature of the Oil pump: -40℃~+40℃
• Main Unit Size:
  • Length: 340mm
  • Height: 115mm
  • Width: 115mm
• Tank Size:
  • Depth: 110mm
  • Height: 325mm
  • Width: 265mm
  • ​Tank Neck & Cap Height: 70mm
• Black flame retardant plastic casing (Top Grade)
• LCD & Remote
  • Can display Error Codes on the LCD screen for easy troubleshooting if required
  • 3 modes (Auto, Manual & Fan only)
  • Bluetooth from mobile app avaialable
  • Built-in thermostat
  • Adjustable thermostat sensor reading (plus or minus up to 9 degrees)
  • Timer function
• Power (5~35w/h). Peak consumption up to 90~150w for the first few minutes while the glow plug heats up.

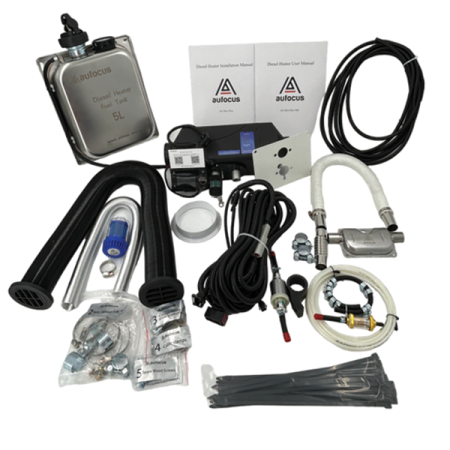

What is included in the AUfocus 2 KW Deisel Heater Kit:

• Easy to follow DIY Installation manual
• Easy to read user manual
• 1x 2kw Heating Unit
• 1x Super Quiet Pulse Fuel Pump 22ml with 2 black rubber connecting hoses
• 1x Pump Mount + Screws
• 1x Reusable Inline Fuel Filter - 60 Mesh, both ends are Aluminium
• 14x Fuel Hose Mini Clamps. 9-11mm (4x already connected and 3x spares)
• 6m Hard Nylon Fuel Line. ID:2mm, OD: 4mm. Pressure 7.8Mpa
• 6m Conduit Tube for Fuel Line protection
• 300mm Black Rubber Fuel Joiner. OD: 10mm, ID: 4mm

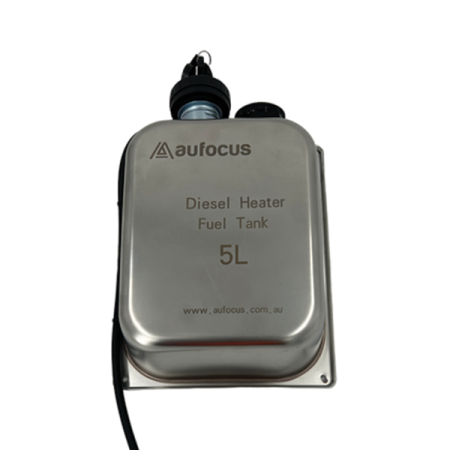

• 1x 5L Stainless Steel Fuel Tank with:
  • Lockable Fuel Cap and Key
  • Fuel Guage
  • SS304 Fuel Pickup Pipe
  • Black rubber Fuel Hose
  • 4x fixing screws.
• 1800mm (after stretch) Hot Air Ducting Pipe - 60mm diameter. 4x Stainless Hose Clamps
• 600mm Exhaust Pipe with sleeve protection - 25mm Diameter. Exhaust end 100mm. 3x Heavy Duty Bolt Hose Clamps
• 600mm Fresh Air Intake - 25mm Diameter. 2x Stainless Hose Clamps
• 1x Fresh Air Filter
• 1x Exhaust Silencer - 1x Bracket, 2x Self tapping screws, stud bolt and washer
• 1x Wiring Harness
  • Flame-resistant conduit tube and Anderson Plug
  • 5m Power Cable
  • 3m Pump Cable
  • 2.5m Controller Cable
  • 1x 20A waterproof fuse
  • Terminal Internal Connector
• 1x LCD Controller with Remote 433 Hz (30m distance) - 3x clamps with self-tapping screws
• 15x 300mm UV Cable Ties
• 1x Floor Mount Protective Metal Ring
• 1x Mount Plate. Length 170mm x Width: 140mm x Thickness: 1.5mm - Used between the main unit and the floor.
• 4x Stud Bolts to connect the Mounting Plate to the Main Unit
• 4x self tapping metal screws for metal floor or frame.
• 9x wood screws for wooden flooring

Ask us about installers in your area.
