Coupling damper suitable for ALKO 150V

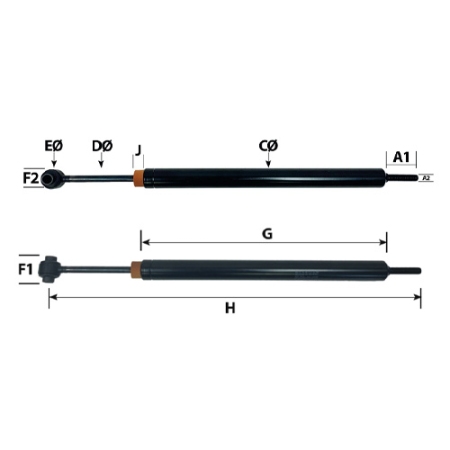

• Dimensions on drawing;
  • A1 – 45mm
  • A2 – M10
  • B –
  • C – 29mm
  • DØ – 10mm
  • EØ – 12mm
  • F1 – 36mm
  • F2 – 28mm
  • G – 349mm
  • H – 520mm
  • J – 13mm
• AL-KO 150V Euro Damper. AL-KO PART NUMBER: 690389.
• Here is a Workshop Manual to assist the correct Damper replacement procedure.
