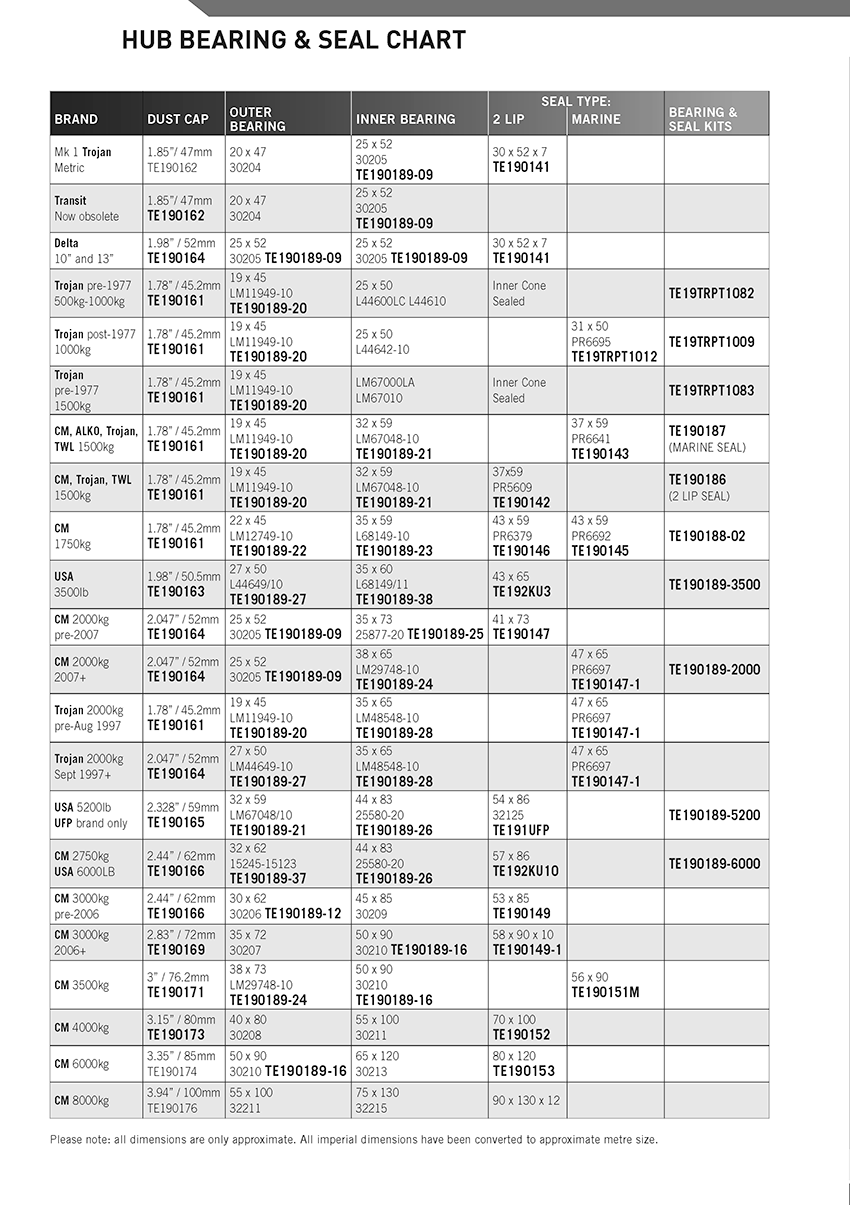

CM Hub Bearing & Seal Chart
You can download the Bearing and Seal Chart here
| BRAND | DUST CAP | OUTER BEARING | INNER BEARING | SEAL TYPE: | BEARING & SEAL KITS | |
|---|---|---|---|---|---|---|
| 2 LIP | MARINE | |||||
| Mk 1 trojan Metric |
1.85”/ 47mm TE190162 | 20 x 47 30204 |
25 x 52 30205 te190189-09 |
30 x 52 x 7 te190141 |
||
| transit Now obsolete |
1.85”/ 47mm te190162 |
20 x 47 30204 |
25 x 52 30205 te190189-09 |
|||
| delta 10” and 13” |
1.98” / 52mm te190164 |
25 x 52 30205 te190189-09 |
25 x 52 30205 te190189-09 |
30 x 52 x 7 te190141 |
||
| trojan pre-1977 500kg-1000kg | 1.78” / 45.2mm te190161 |
19 x 45 LM11949-10 te190189-20 | 25 x 50 L44600LC L44610 |
Inner Cone Sealed | te19tRPt1082 | |
| trojan post-1977 1000kg | 1.78” / 45.2mm te190161 |
19 x 45 LM11949-10 te190189-20 | 25 x 50 L44642-10 | 31 x 50 PR6695 te19tRPt1012 |
te19tRPt1009 | |
| trojan pre-1977 1500kg | 1.78” / 45.2mm te190161 |
19 x 45 LM11949-10 te190189-20 | LM67000LA LM67010 | Inner Cone Sealed | te19tRPt1083 | |
| cM, alko, trojan, tWl 1500kg | 1.78” / 45.2mm te190161 |
19 x 45 LM11949-10 te190189-20 | 32 x 59 LM67048-10 te190189-21 | 37 x 59 PR6641 te190143 | te190187 (MARINE SEAL) |
|
| cM, trojan, tWl 1500kg |
1.78” / 45.2mm te190161 |
19 x 45 LM11949-10 te190189-20 | 32 x 59 LM67048-10 te190189-21 | 37x59 PR5609 te190142 | te190186 (2 LIP SEAL) |
|
| cM 1750kg |
1.78” / 45.2mm te190161 |
22 x 45 LM12749-10 te190189-22 | 35 x 59 L68149-10 te190189-23 | 43 x 59 PR6379 te190146 | 43 x 59 PR6692 te190145 | te190188-02 |
| uSa 3500lb |
1.98” / 50.5mm te190163 |
27 x 50 L44649/10 te190189-27 | 35 x 60 L68149/11 te190189-38 | 43 x 65 te192ku3 |
te190189-3500 | |
| cM 2000kg pre-2007 | 2.047” / 52mm te190164 |
25 x 52 30205 te190189-09 |
35 x 73 25877-20 te190189-25 |
41 x 73 te190147 |
||
| cM 2000kg 2007+ | 2.047” / 52mm te190164 |
25 x 52 30205 te190189-09 |
38 x 65 LM29748-10 te190189-24 | 47 x 65 PR6697 te190147-1 | te190189-2000 | |
| trojan 2000kg pre-Aug 1997 | 1.78” / 45.2mm te190161 |
19 x 45 LM11949-10 te190189-20 | 35 x 65 LM48548-10 te190189-28 | 47 x 65 PR6697 te190147-1 | ||
| trojan 2000kg Sept 1997+ | 2.047” / 52mm te190164 |
27 x 50 LM44649-10 te190189-27 | 35 x 65 LM48548-10 te190189-28 | 47 x 65 PR6697 te190147-1 | ||
| uSa 5200lb uFP brand only |
2.328” / 59mm te190165 |
32 x 59 LM67048/10 te190189-21 | 44 x 83 25580-20 te190189-26 |
54 x 86 32125 te191uFP |
te190189-5200 | |
| cM 2750kg uSa 6000LB |
2.44” / 62mm te190166 |
32 x 62 15245-15123 te190189-37 |
44 x 83 25580-20 te190189-26 |
57 x 86 te192ku10 |
te190189-6000 | |
| cM 3000kg pre-2006 | 2.44” / 62mm te190166 |
30 x 62 30206 te190189-12 |
45 x 85 30209 |
53 x 85 te190149 |
||
| cM 3000kg 2006+ | 2.83” / 72mm te190169 |
35 x 72 30207 |
50 x 90 30210 te190189-16 |
58 x 90 x 10 te190149-1 |
||
| cM 3500kg | 3” / 76.2mm te190171 |
38 x 73 LM29748-10 te190189-24 | 50 x 90 30210 te190189-16 |
56 x 90 te190151M |
||
| cM 4000kg | 3.15” / 80mm te190173 |
40 x 80 30208 |
55 x 100 30211 |
70 x 100 te190152 |
||
| cM 6000kg | 3.35” / 85mm TE190174 | 50 x 90 30210 te190189-16 |
65 x 120 30213 |
80 x 120 te190153 |
||
| cM 8000kg | 3.94” / 100mm TE190176 | 55 x 100 32211 |
75 x 130 32215 |
90 x 130 x 12 | ||
