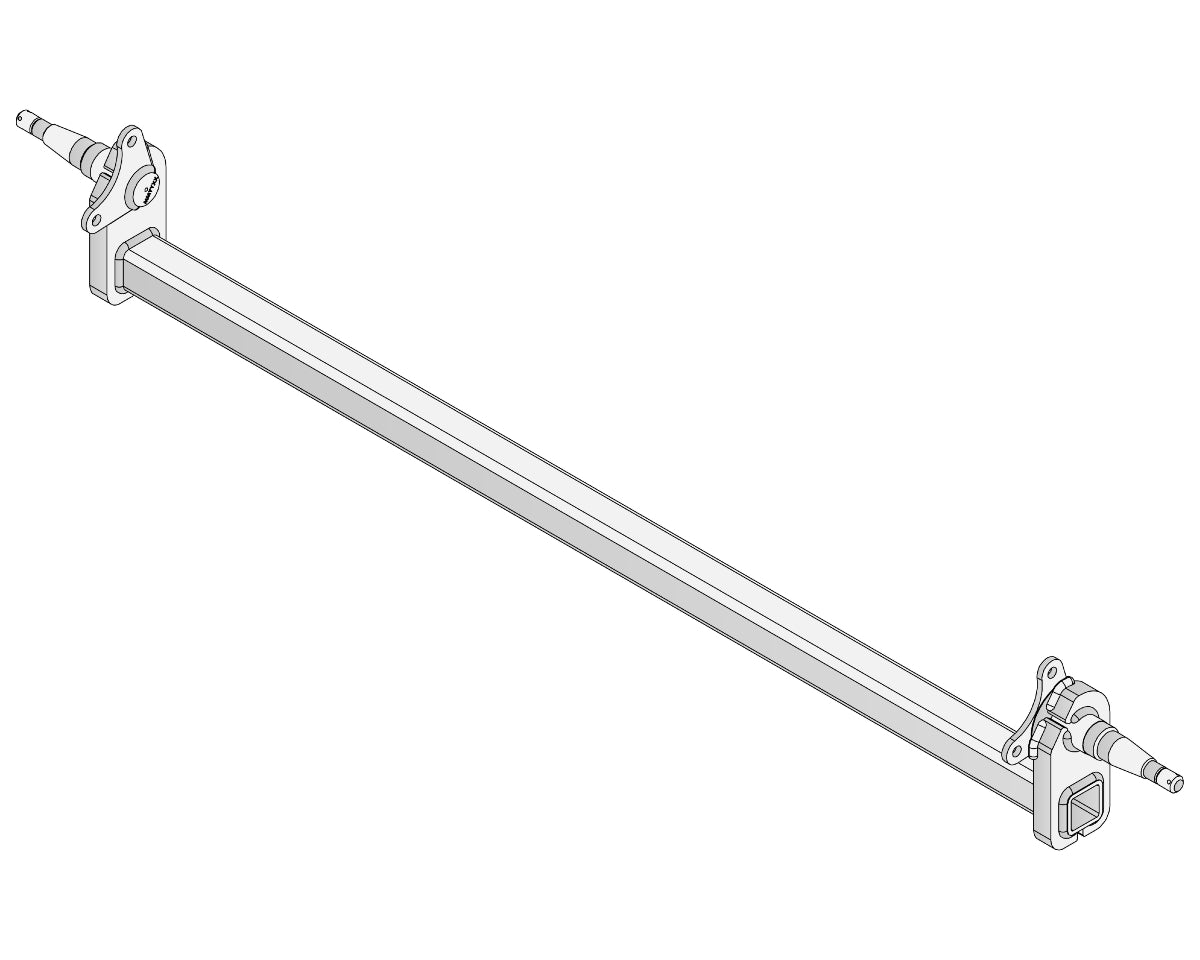

Bare Axle - Drop Beam - 1500kg - Electric Brakes

All Trojan Axles are manufactured using Rolled Hollow Section tube (RHS) and this offers many advantages over solid beam axles. They are as strong as solid beams, lighter in weight and can be Galvanised at an economical price.

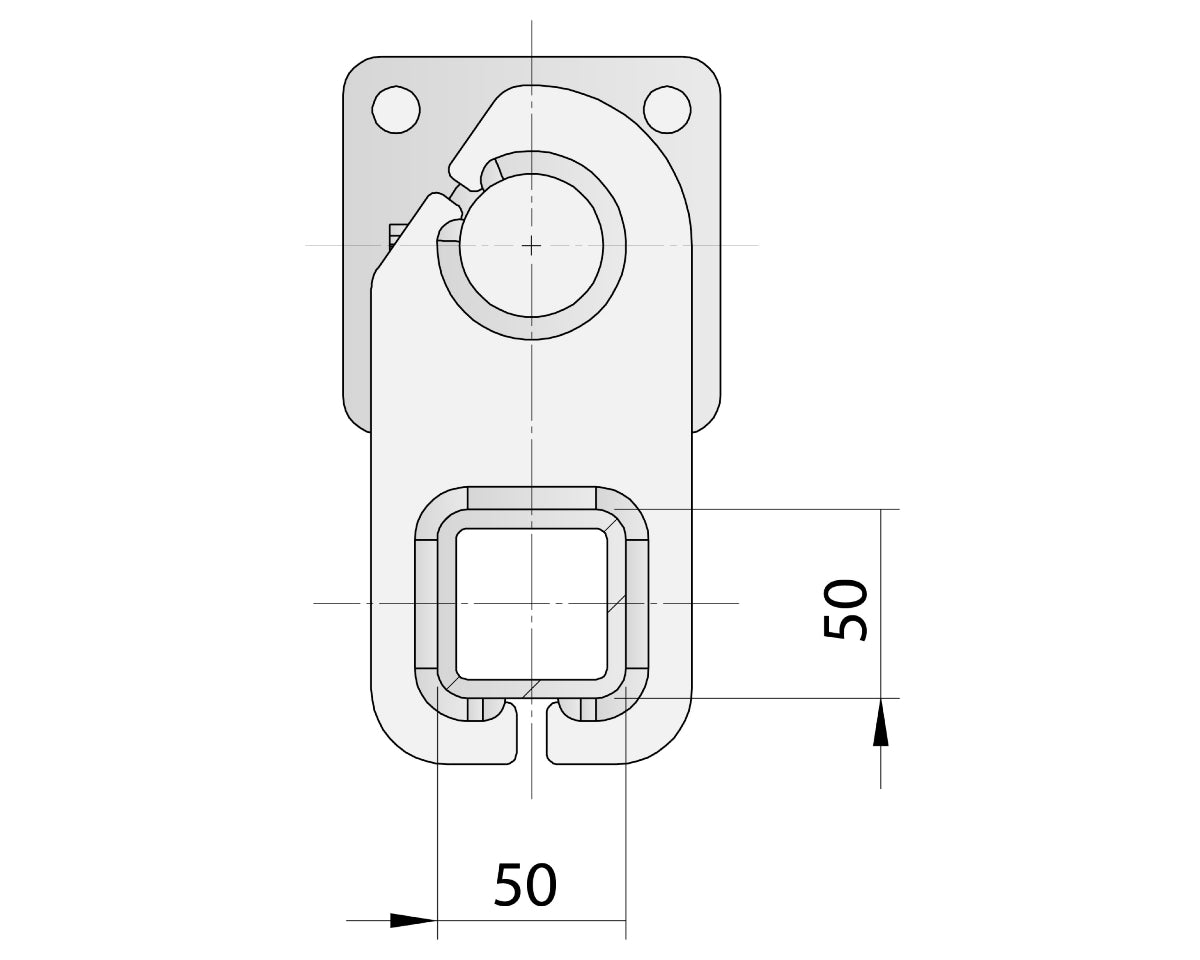

The beams are 50mm x 50mm x 5mm RHS. The nominated Axle load is the total weight of both the trailer and the load carried.

  • These are bare axles only -  Hubs & Stubs, Disc Brake Kits, etc are not included. These need to be ordered separately from the Cross Sell Items below.

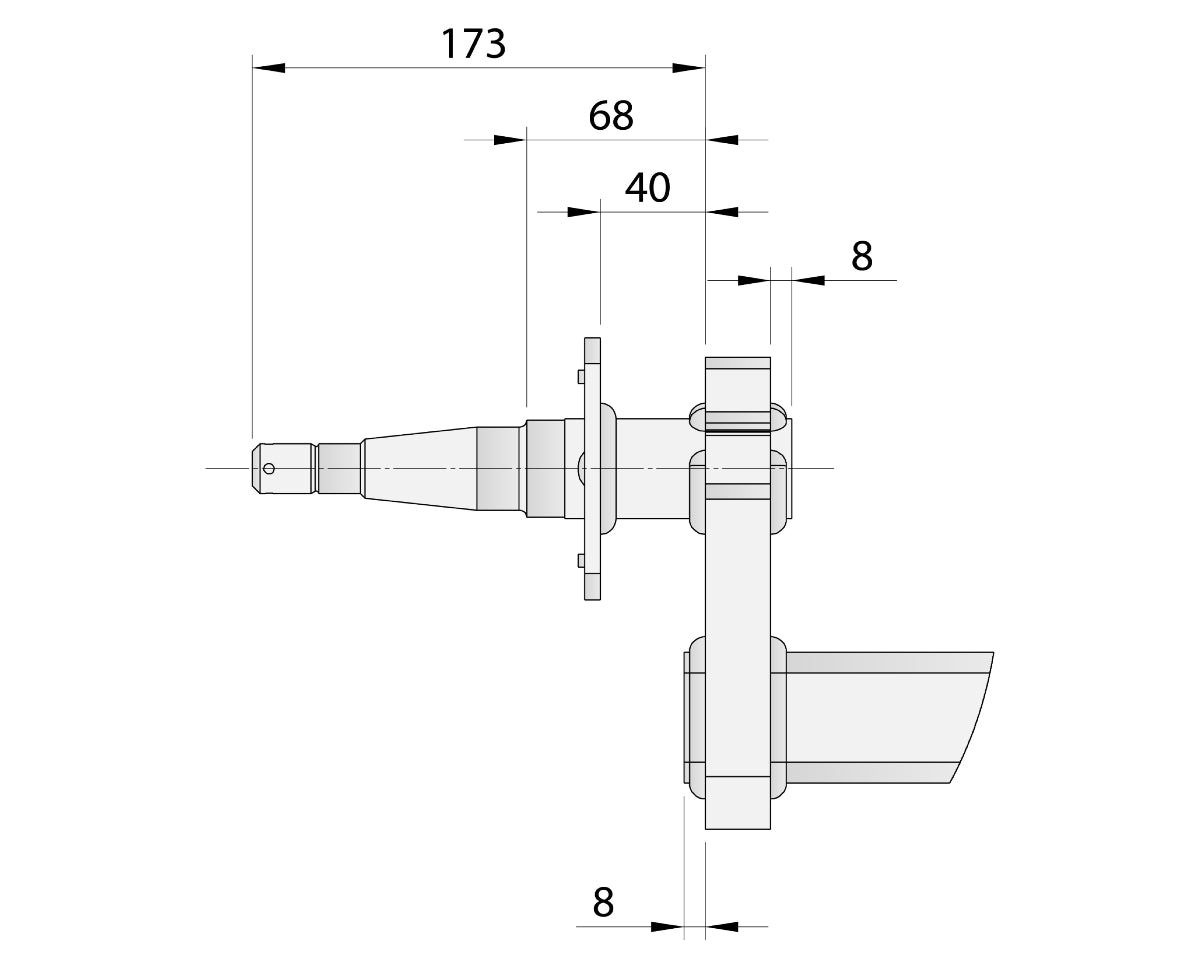

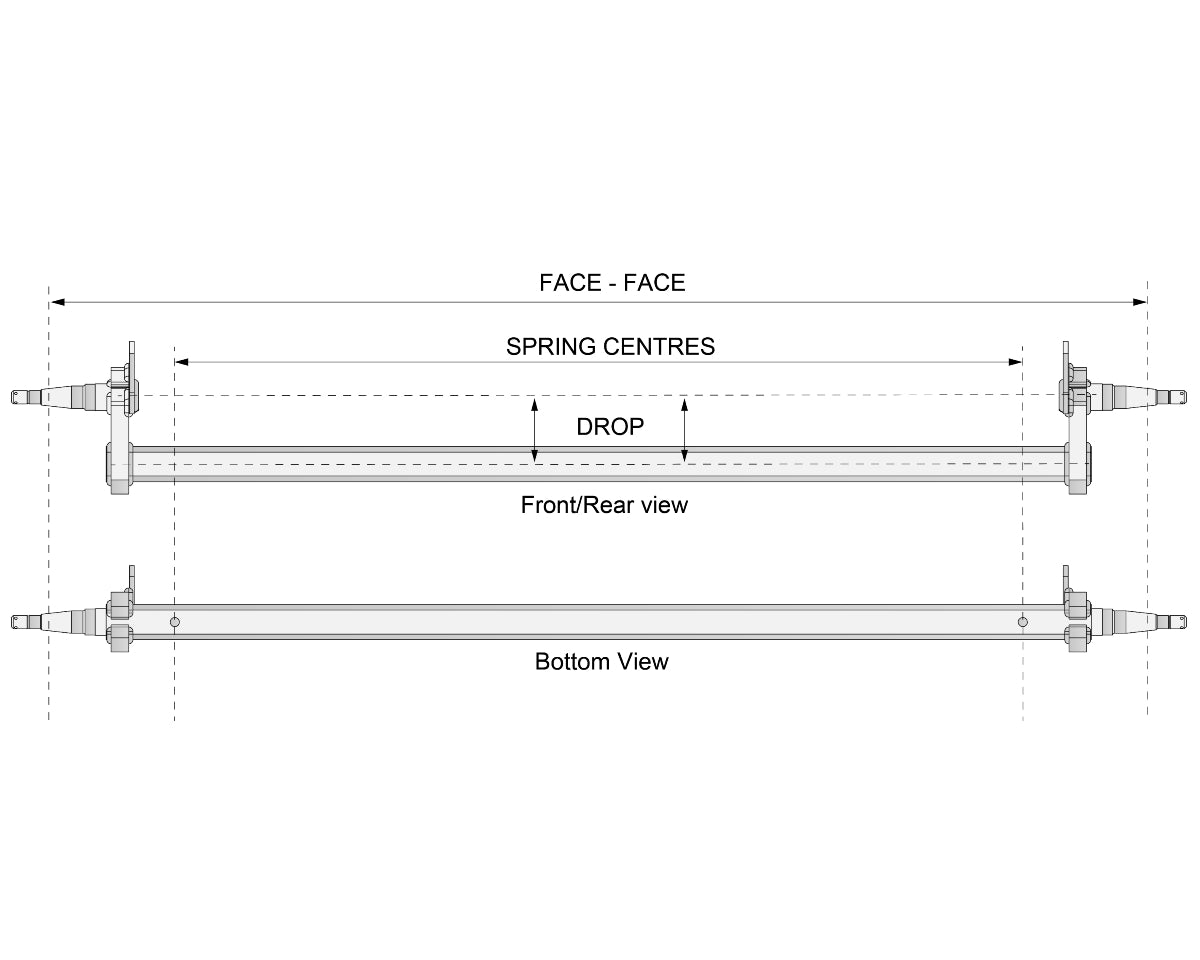

  • You need to supply the Dimensions A & B shown in the drawing below.
  • We also need the following information with your order
    • The Outside width of the Chassis
    • Are the Springs mounted Under or Over the Axle
  • Minimum allowed Hub face to side off chassis = 220mm

CM Trailer Parts - Drop Beam Axle

Current estimates are approximately 8 weeks for delivery for the Trojan Galvanised Axles

Each

Bare Axle - Drop Beam - 1500kg - Electric Brakes

SKU:T020098+

Variant:1500kg - 50x50x5 RHS / Bare Metal / Electric Drum Brake / Over 1800mm

Availability: OK

$530.95

Bare Axle - Drop Beam - 1500kg - Electric Brakes

SKU:T020098

Variant:1500kg - 50x50x5 RHS / Bare Metal / Electric Drum Brake / Under 1800mm

Availability: OK

$479.20
