Redarc | SKU: SRPA-RM

REDARC Solar Regulator Remote Monitor - Anderson Plug

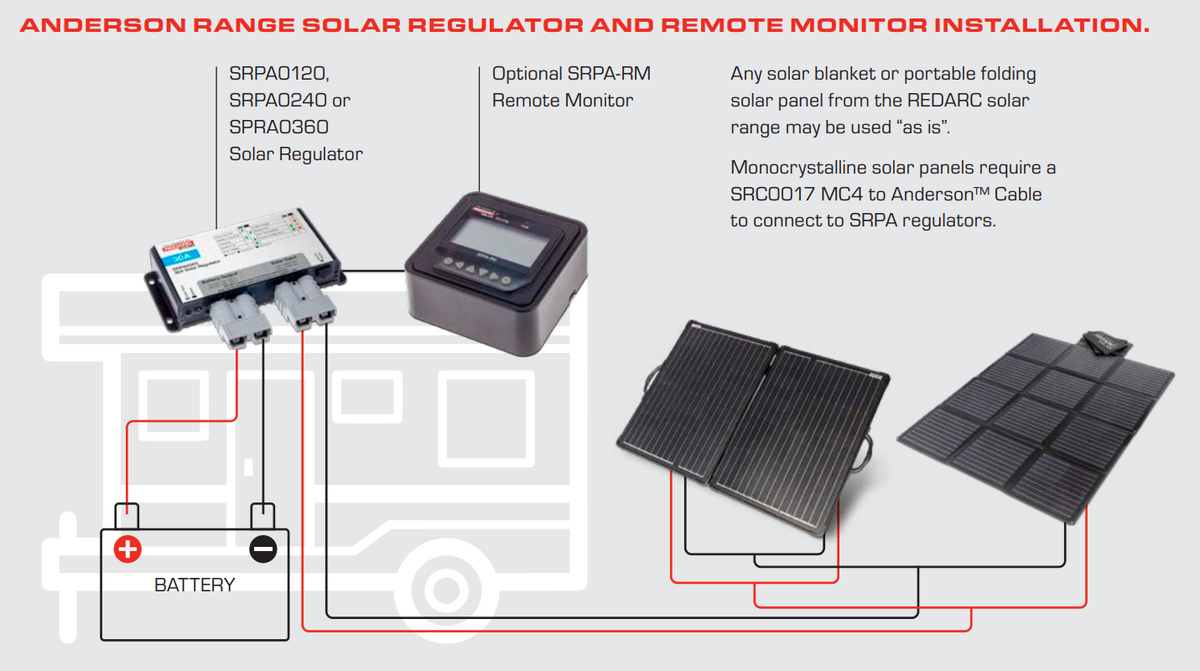

The REDARC 12 and 24-volt Solar Remote Monitor allows the user to monitor solar panels, battery and system information. This product is only compatible with the SRPA range (Anderson Plug).

Solar Remote Monitor Features

For use with REDARC SRPA regulators
Large, backlit 3” display
Real time system monitoring
Designed for 12 or 24 volt systems
Required for battery setting and configuration changes to SRPA regulators

Solar Regulator Specifications

Monitor Communication	RS485
Power Consumption - backlight on	<23mA
Power Consumption - backlight off	<3mA
Operating Temperature	-20 to 70 degrees Celsius
LCD Screen Size	76.5 x 42mm (3.2")
Faceplate screws included	Yes - 4 included/M4
Wall bracket screws included	No - 4 required
Connector Type	Anderson Plug
Remote Monitor Connection	RJ45
Dimensions - overall	95 x 95 x 24mm
Dimensions - screen faceplate	95 x 95 x 8mm
Dimensions - Mounting Bracket	112 x 112 x 35mm
Weight	105g
Warranty	2 years

$144.90
