BCDC Battery Charging Wiring Kits - 25A

Battery Charging Direct Current (BCDC) wiring kit to suit installations up to 25A.

The BCDC Wiring Kit allows users to connect their BCDC to the auxiliary and start batteries via a Terminal Block.

The terminal block provides a connection between the BCDC and the rest of the installation (see Figure 2.1) allowing a change in cable diameter without the need for soldering or complicated lug terminals

3 Wiring Options (select below)

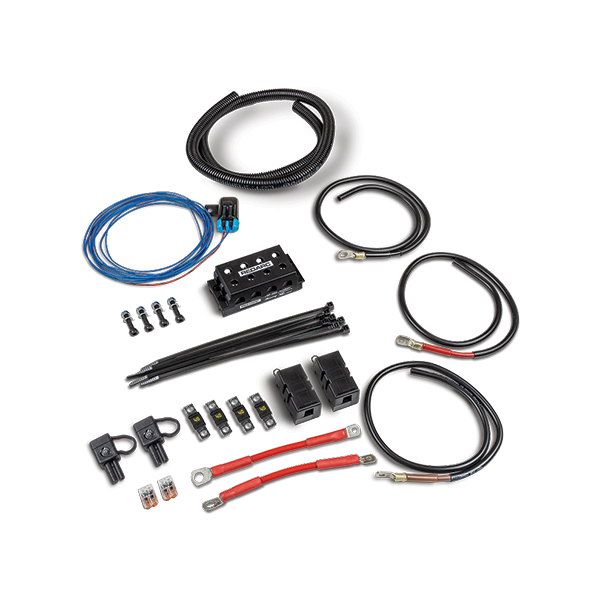

  • Engine Bay - Side by Side (BCDCWK-001)
    Suitable for BCDC1220, BCDC1220-IGN and BCDC1225D engine bay installations where the auxiliary battery and start battery are in close proximity in the engine bay (less than 0.6 m/2' apart).
  • Engine Bay - Across the Vehicle (BCDCWK-002)
    Suitable for BCDC1220, BCDC1220-IGN and BCDC1225D engine bay installations where the auxiliary and start are more than 0.6 m (2') and less than 3.5 m (11') apart; typically, at opposite ends of the engine bay.

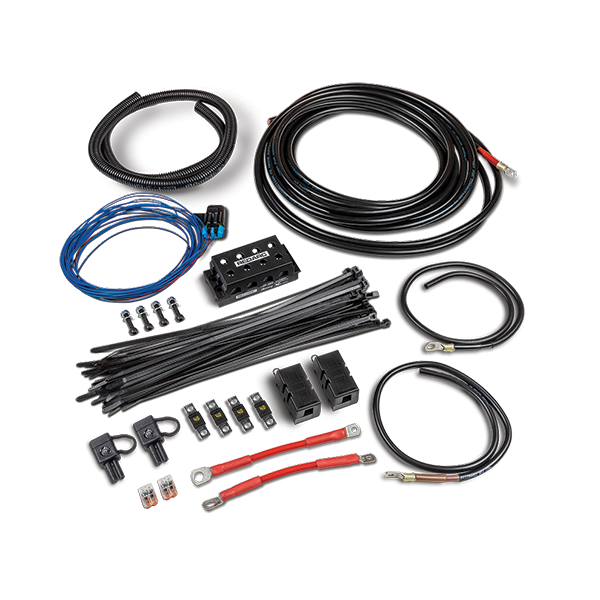

  • Rear of the Vehicle (BCDCWK-003)
    Suitable for BCDC1220, BCDC1220-IGN, BCDC1225D and BCDCN1225* vehicle rear installations where the auxiliary battery is up to 8.5 m (28') away from the start battery. Typically, located at the opposite end of the vehicle from the engine bay, in the tray of the ute/pickup truck or at the rear of a wagon.

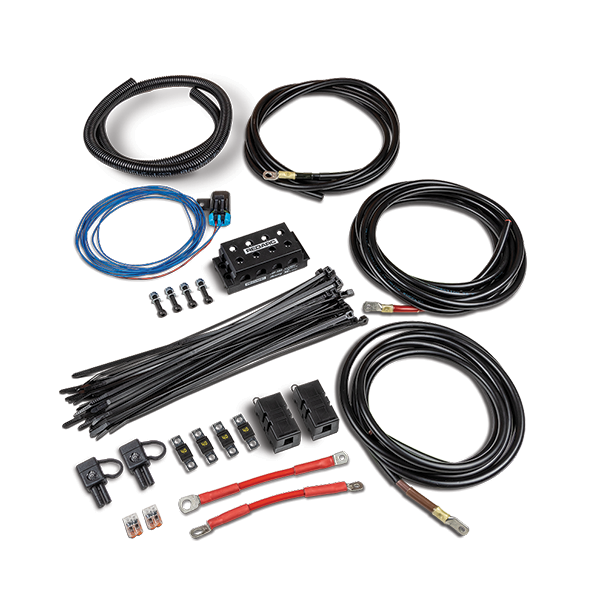

Kit Includes (refer to the wiring parts diagram)

  1. 1x Brown, Black and Red Cables
  2. 1x Terminal Block with plastic cover
  3. 4x M5 x 25mm Socket Head Screw
  4. 4x M5 locking nuts
  5. 4x M5 Flat Washers
  6. 2x 150mm (6") Red Cable (shorter)
  7. Fuse Kit - 4x MIDI Fuses (2 Spares), 2x MIDI Fuse holders
  8. Cable Ties
  9. 2x Wago Connector and Boot
  10. Blue Cable (1x long cable (blue), 1x short cable (red & Bue), 2x A Mini Blase fuses
  11. 1m (39") Protective Conduit

Optional Accessory

  • Anderson Solar Cable (sold separately) suitable for BCDC Dual Input Chargers (25A, 40A, 50A models)

Download the REDARC Wiring Kit Instructions here

BCDC Battery Charging Wiring Kits - 25A

SKU:BCDCWK-001

Installation Type:Engine bay - side by side

Availability: OK

$610.00

BCDC Battery Charging Wiring Kits - 25A

SKU:BCDCWK-002

Installation Type:Engine bay - across the vehicle

Availability: OK

$840.00

BCDC Battery Charging Wiring Kits - 25A

SKU:BCDCWK-003

Installation Type:Vehicle rear

Availability: OK

$886.00
