AL-KO  |  SKU: 628200XP3bx

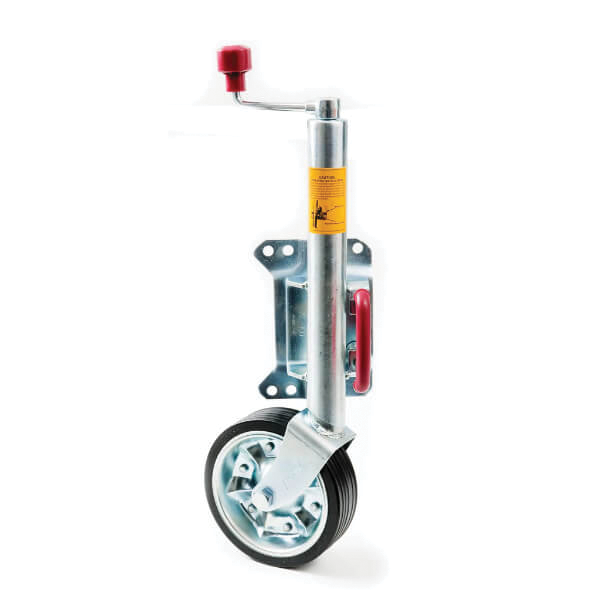

400kg Capacity Jockey Wheel - 200mm Wheel - AL-KO

This AL-KO 8" Jockey Wheel is suitable for Trailers, Camper trailers, Caravans, Boat Trailers, Toy Haulers, Car Trailers and more. No need to remove it from the trailer you can just pull the release handle and the jockey wheel rotates into a suitable travelling position. It also has a selection mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar.

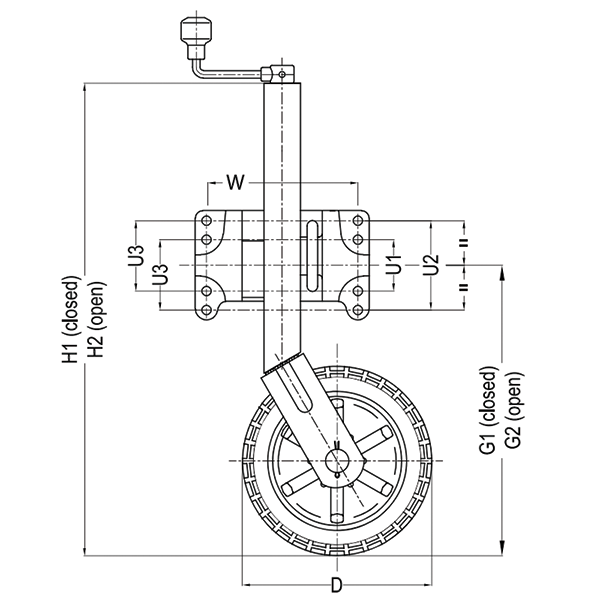

Wheel Size (D) 200mm Diameter
Mounting Swivel
Static Capacity 400kg
Tube O.D. 48mm
Closed H1 570mm
Open H2 820mm
Closed G1 305mm
Open G2 522mm
Bracket U1: 63mm
U2: 113mm
U3: 88mm
W: 185mm
Weight 8.5kg
Regular price $195.61
incl GST

Each


Availability: OK
