BPW  |  SKU: 4008254
Sold out

BPW Brake Drum 4 Stud 200x50 - 64mm Bearing - S2005-7 RASK

4 Stud BPW Brake drum 200x50 with 64mm Bearing

BPW brake drum to suit BPW Brake Type: S2005-7 RASK

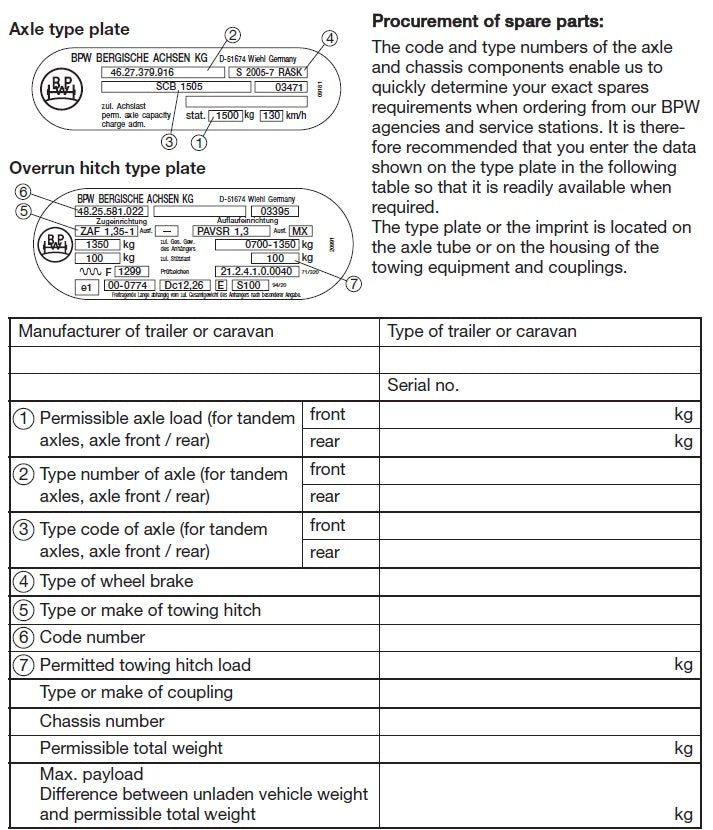

Cross-reference the casting, bearing type/size and number of studs on your current drum to select the correct drum.

Brake Size 200x50mm S2005-7 RASK
Brake Shoe Replacement Options 4018192
4018192-AM
Casting Reference 01.274.07.26.0
03.274.07.28.0
4016464
(outside of the drum)
BPW SKU 05.434.84.19.0
AL-KO SKU 4008254
Fits Axles with code CB 654
CB 1054
CB 1304
CB 1355
DB 854
DB 1054
DB 1354
No of Studs x PCD 4x 100mm
Wheel Bolt/Stud Size 4x AL-KO M12 Wheel Bolt
Spherical - Steel Wheels- 2081670020
Conical - Steel Wheels - 2081670018
Conical - Alloy Wheels - MP4192B
Grease Cap
Bearing
(included in the Drum)
One Piece Sealed For Life (SFL)
64mm(OD) x 34mm(ID) x 37mm(Depth) - 605124
Oil Seal N/A
Bearing, Cap & Nut Kit
Hub Nut One Shot Nut - 581200
(recommended hub nut torque: 280Nm)
Backing Plates N/A
Regular price $826.50
incl GST

Each


Sold out.

Contact us about this product
