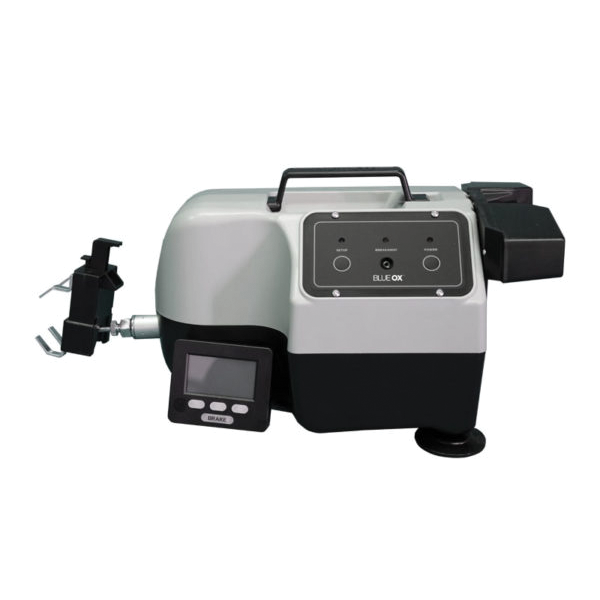

Blue Ox - Patriot 3 Flat Tow Braking System
The Blue Ox Patriot 3 is a proportional control that uses a microprocessor to monitor the vehicle’s deceleration and apply the trailer brake accordingly. This means that applying your brakes will activate the trailer brakes at an appropriate level. For example, if you are driving down a steep hill and need to slow down quickly, your vehicle will automatically apply more braking force to both vehicles than if you were driving on flat terrain or just making slight speed changes.
Whether you tow a full-size SUV, pickup, compact car, hybrid, or multiple vehicles with different floorplan configurations, the Patriot Brake system will work for you with no special brackets required.
Braking action provides the same force as a foot on the brake pedal, in the middle of the pedal, at the same angle for true, responsive braking. Faster Extension of the braking action for quicker, more responsive stops.
Features:
- All electric
- Fast response braking time
- Works on all vehicles, including hybrids
- Supercapacitor lifetime battery
- Automatically checks brake pressure during setup
- Continuously monitors brake pressure during towing
- Lightweight Break-away included

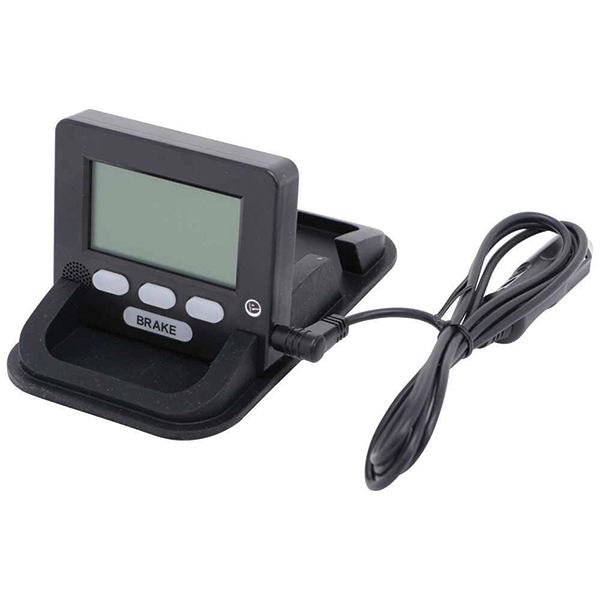

- Includes Compact, dash-mounted in-cab controller:
- Adjusts the braking force
- Overrides automatic braking
- Monitors brake function
- Breakaway alert
- Visual and audio alerts
- Great for flat towing

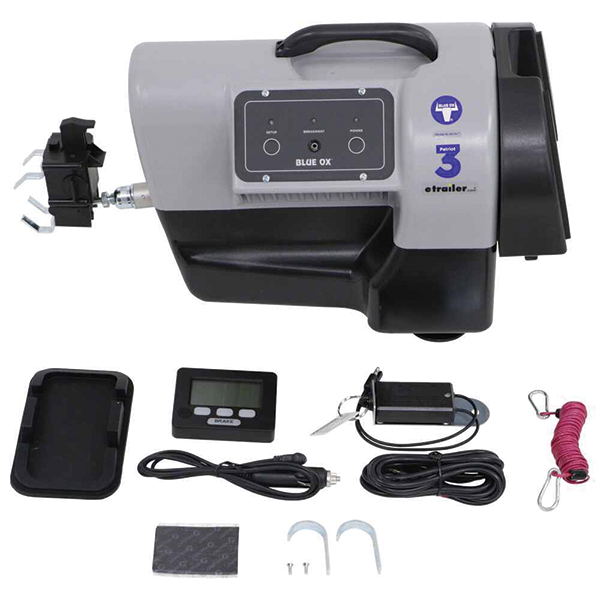

Everything you need is in the box. No tank to drain, no pumps or hoses to connect. No mess.
Quick Setup:
- Attach the brake claw
- Plug in the power cord and breakaway switch
- Push the setup button.
- The Patriot will cycle once. The Indicator light will light up, indicating that you are ready to go.
Dimensions
- 8"x7.5"x11.5"
