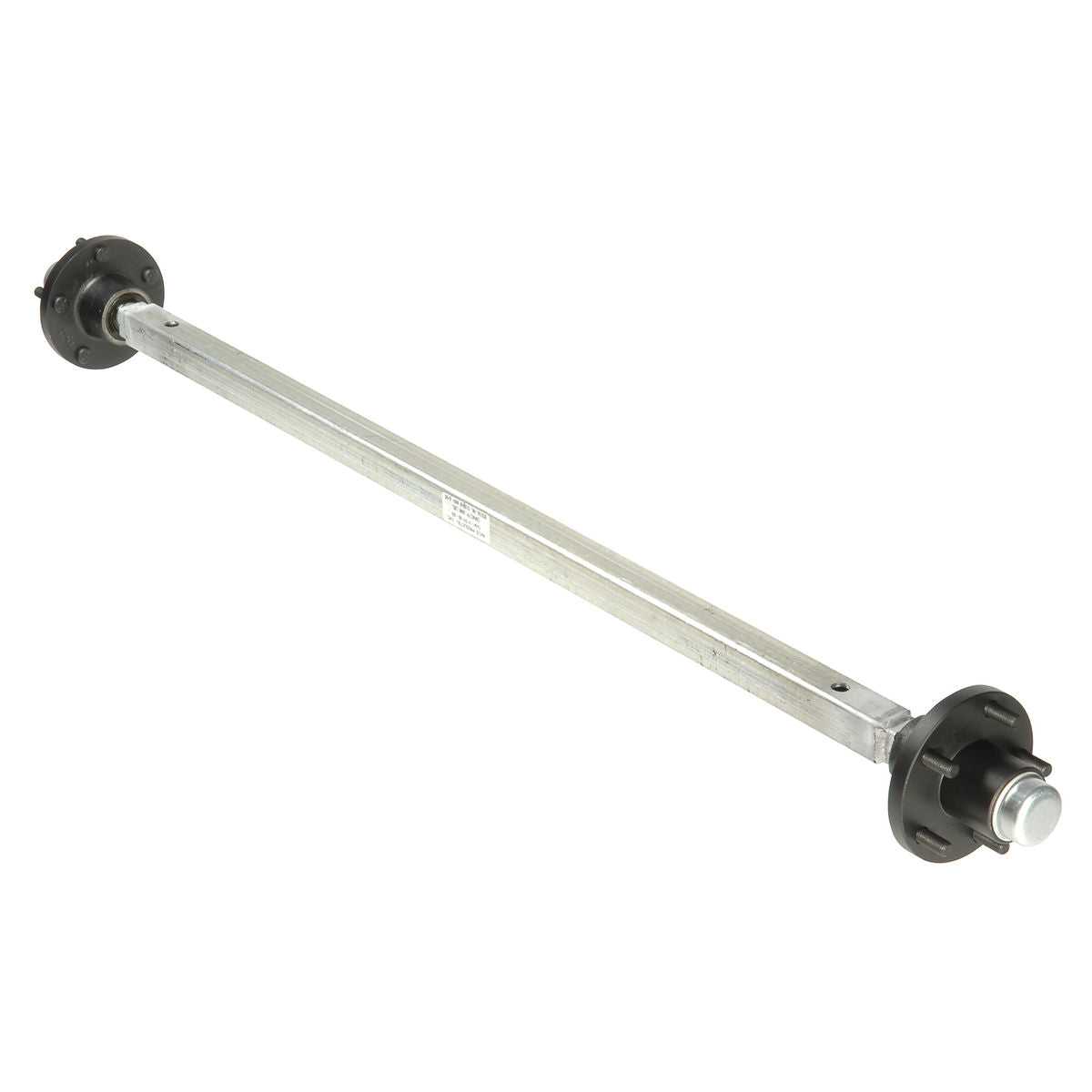

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

  • Complete axle - Disc Braked
  • Please complete the requirement measurement. Your axle will be built to the measurements provided, please double check all measurements before submitting your order.
  • Rectangular Hollow Section (RHS): 50x50x5mmmm
  • Finish: Galvanised, Bare Metal or Painted.
  • Length: Under 2.2m or Over 2.2m
  • PCD: 5x4.5"
  • Hub Diameter: 190mm

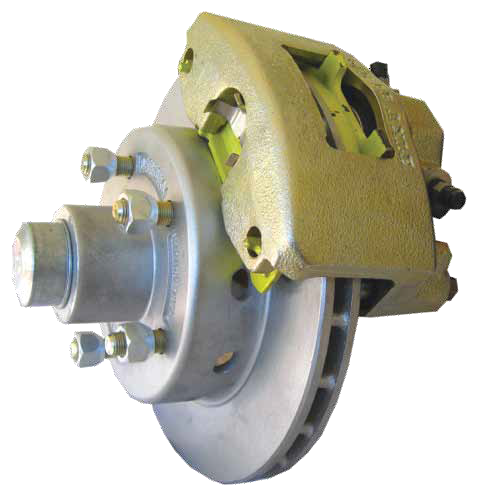

  • One piece DeeMaxx Gold line 11" or 280mm x 22mm wide diameter ventilated rotors.

All CM Trailer Axles are manufactured using Rolled Hollow Section tube (RHS) and this offers many advantages over solid beam axles. They are as strong as solid beams, lighter in weight and can be Galvanised at an economical price.

The nominated Axle load is the total weight of both the trailer and the load carried.

CM Trailer Parts - Axle Measurements

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

SKU:TE3AB1500G2.2U-DIHD150F

Finish:Galvanised Under 2.2M

Pre-order: 7-8 Weeks

$1,501.27incl GST

Each - Complete Axle

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

SKU:TE3AB1500G2.2O-DIHD150F

Finish:Galvanised Over 2.2M

Pre-order: 7-8 Weeks

$1,591.02incl GST

Each - Complete Axle

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

SKU:TE3AB1500B2.2U-DIHD150F

Finish:Bare Metal Under 2.2M

Pre-order: 3 Weeks

$1,376.32incl GST

Each - Complete Axle

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

SKU:TE3AB1500B2.2O-DIHD150F

Finish:Bare Metal Over 2.2M

Pre-order: 3 Weeks

$1,399.03incl GST

Each - Complete Axle

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

SKU:TE3AB1500DG2.2U-DIHD150F

Finish:DuraGalv Under 2.2M

Pre-order: 3 Weeks

$1,443.36incl GST

Each - Complete Axle

Axle Straight Beam - 1500kg Ford 5x4.5"pcd - Disc Braked

SKU:TE3AB1500DG2.2O-DIHD150F

Finish:DuraGalv Over 2.2M

Pre-order: 3 Weeks

$1,430.83incl GST

Each - Complete Axle
